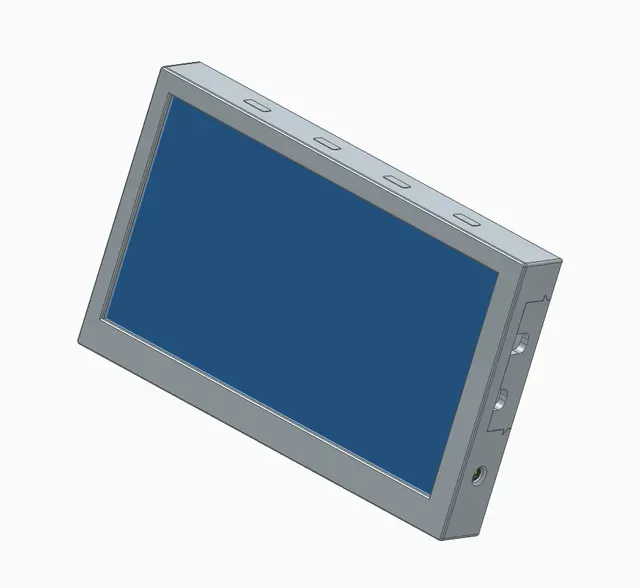

Case for Mellow FLY HDMI 7 LCD HDMI Display Touch

A housing for the Mellow FLY HDMI7 LCD HDMI display touch

The following parts are required:

- display_bezel (1x)

- case_cable_cover (1x)

- case_bottom (1x)

- button (4x)

- 3x6 magnet (6x) (4x optional)

- M3 threaded insert (Voron style) (4x optional)

- M3x8 SHCS (4x)

Magnets and threaded inserts can be used if necessary.

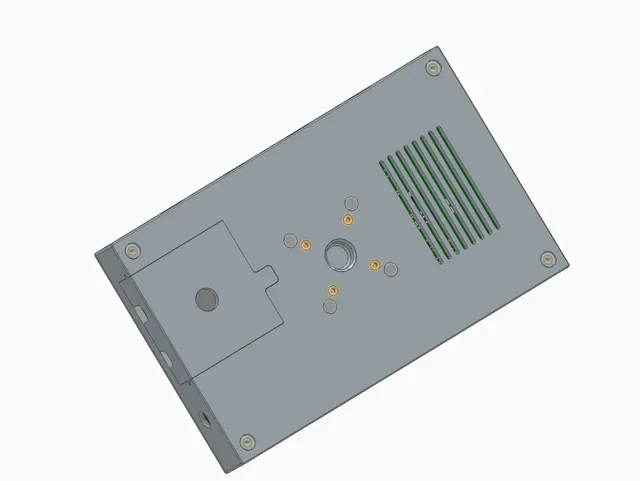

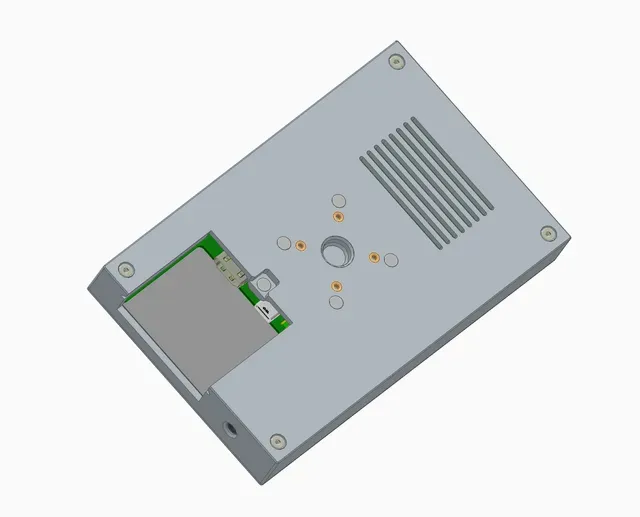

First test the fit of the case cable cover. If it is tight enough, the magnets in the case cable cover and case bottom do not need to be inserted. These magnets are intended to prevent the cover from slipping out if it is loose.

Before inserting the display, the buttons must be placed in the recess. This can be a bit fiddly, so it is best to position the case so that the buttons do not fall out when tilted.

When inserting the display, pay attention to the ribbon cables.

Once the display is screwed in place, the display bezel can be clicked into place.

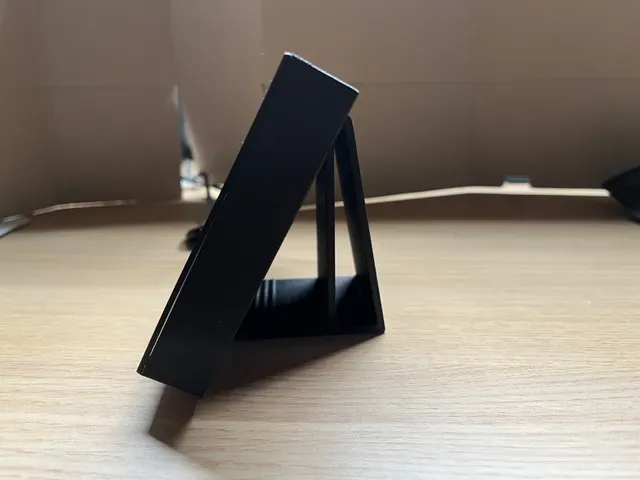

also designed a small desk stand on which you can position the display or a smartphone at different angles. https://www.printables.com/model/1575172-desk-stand-for-smartphone-or-small-displays
