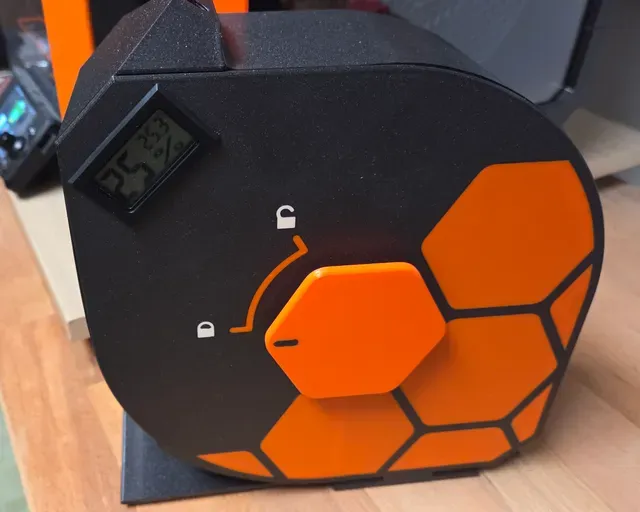

Prusa CORE One/+/L Dry Box with Table Stand

If you are satisfied with the original drybox and you need to put it on table or shelf, print only the table stand. It can be mounted with four M3x20 screws as on the printer without modification. You can attach 6 rubber legs to the stand but it works also without them. Cut 12x12 mm rectanges from a 2-5 mm thick rubber sheet or Czech makers can buy them here .

If you want to improve the sealing in the upper left corner, print the modified body and lid. You will need 4 magnets 20x5x3 mm. For the lid pause the print at 4.40 mm and insert the magnets. In the body the magnets can be inserted when print is completed but for better quality I strongly recommend you to pause the print at 73.40 mm and insert the magnets already here. They will serve you as support for the top.

For rest of the components see the original model .
