BeamCase - slide in fan bracket

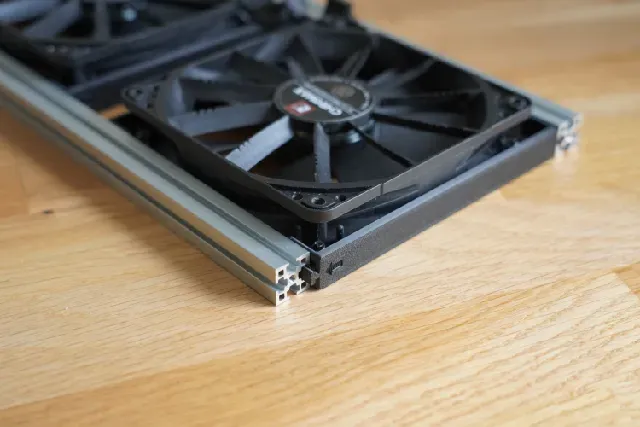

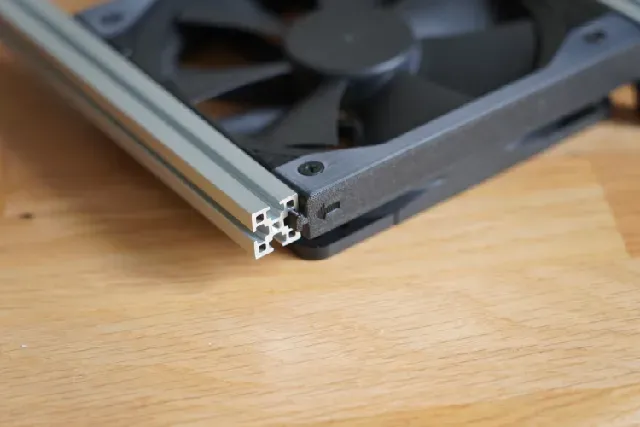

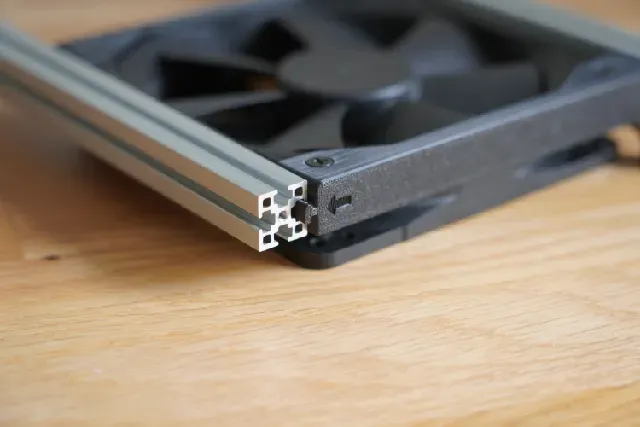

These are the slide in fan brackets for the BeamCase system. These brackets slide into the aluminium profiles and instead of being screwed to nuts in the profiles which makes them simpler than the other options, but they need to be added during the frame assembly process.

Components structure and naming:

Each bracket comes with an IFW number that indicates the compatibility. IFW stands for I nner F rame W idth and describes the distance between the Makerbeam XL profiles at the top, front and bottom. The IFW number is an indicator of the width of the case and is important when selecting accessories and case panels. There are also Versions, that can be mounted at the sides. of the case.

Print Instructions:

Ideally print this model in a stronger and more temperature resistant filament like PETg or ABS. In order for the bracket to work perfectly it has to be printed accurately, so compensate for shrinkage. This print like all BeamCase parts does not require any supports.

I adjust for ABS shrinkage by scaling the model to 100.5% (Bambu Lab P1S and Sunlu ABS) , but it depends on the filament and printer and print speed.
