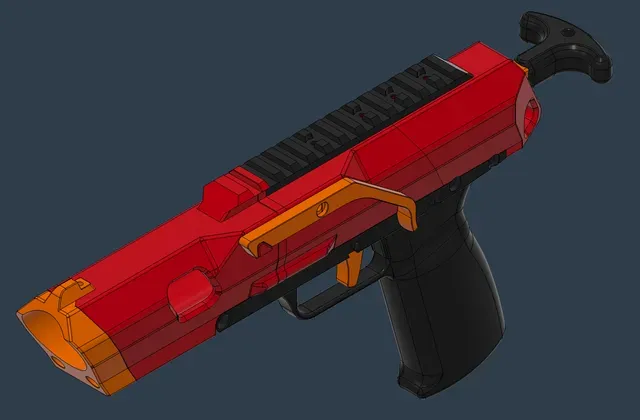

FLP-07 Goblin x DanPistol T-pull v1.1

Love the Goblin, but the included O-pull wasn't for me. I really like the T-pull from the DanPistol, so I decided to use that T-pull.

Hardware Required

- 1x M3 Hex nut

- 1x M3 x 30mm socket head screw

- 2x m3 x m3 x 5 x 4 mm brass heatset inserts (Only if you're using the heatset plunger rod)

Print settings

5-walls, 100% infill for the plunger rod.

5-walls, 15-20% infill for the T-pull.

Installation

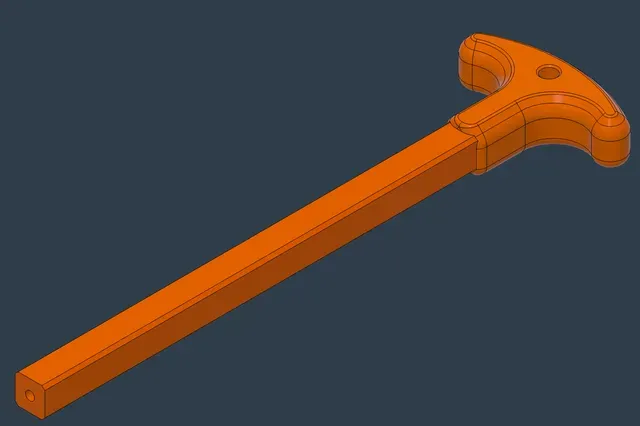

The new plunger rod is symmetrical, so which side goes into the T-pull and which side the plunger head faces doesn't matter. But I do install the rod textured/face that lies against the bed to the left (if you're looking from the back of the blaster), which is the same as the stock plunger rod. Not sure if it matters, though. And the face of the T-pull that lay against the bed should be facing up.

Insert the hex nut into the slot in the plunger rod. Insert the plunger rod into the T-pull, and screw the m3 x 30mm bolt into the plunger rod through the T-pull.

Changelog

- 07/28/26 v1.1

Added new plunger rods that are 1mm longer to prevent the T-pull from hitting the rear body, which would cause it to crack over time. Plunger rods include a heatset version and a default m3 nut version, and a 1mm spacer for those who don't want to reprint their V1 plunger rods.
