Universal Titan Aero Fan Duct for Volcano + DC42 IR Sensor (Update!)

Big Update

After a while even with PETG the close distance to the Volcano Block made one of the Arms soften and hang a bit.

Also I tested multiple hole Sizes and learned that I underestimated the static pressure that is working against the fan. The small long holes were to restricted and lowered efficiency! (Even tho I got quite good results with it)

The Version 2 has mainly 4 changes:

- Bigger holes, bigger Air Channels, much more airflow!

- The Arms are wider apart and leaving more clearance to the Heater Block!

- Walls are now thicker wich allows to be easily printed when using larger nozzles

- IR Probe is now on the other side

Version 3 (additionally to V2 Changes):

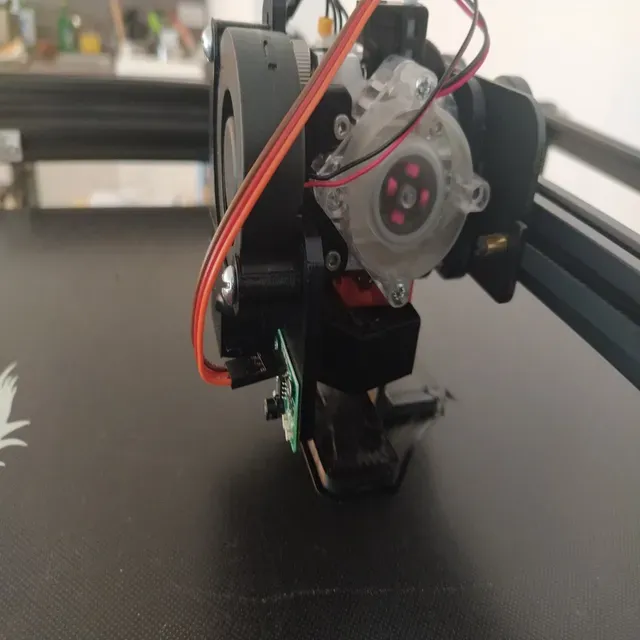

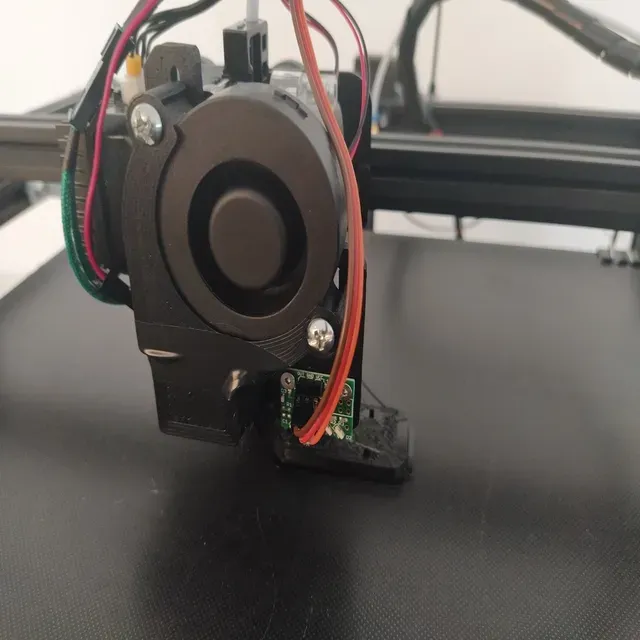

- IR Probe is now mounted to the Mount itself. Z-Offset with V3 is about 1.5mm to the nozzle of an Volcano Block! But this is very dependent on the Bed Material!

- Definitely wont fit standard V6 Block!

- Step file for Mount is uploaded too. If you want to fork it for BL-Touch or something just do so!

Version 3.1 (replaces 3.0)

- Arms 2mm shorter and thus holes closer to fan, better Air-Focus around nozzle.

Original Text

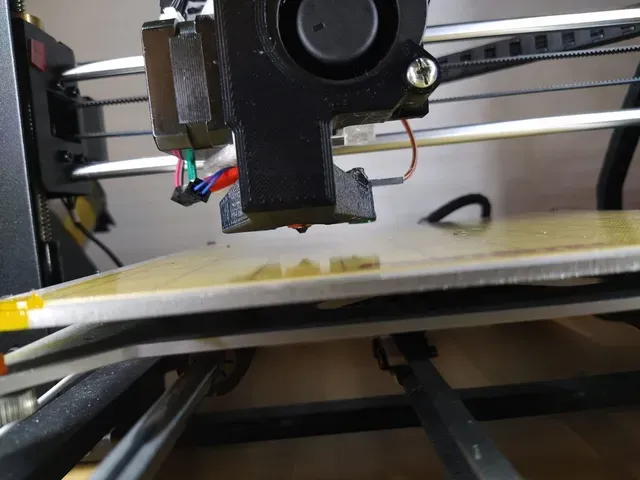

This is my take on an quite universal compatible Titan Aero Fan Duct.

Since I upgraded my Titan Aero to the Volcano Hotend, no Fan Ducts I could find convinced me. Most were Printer specific, some did simply not cool good enough and nearly all blocked mounting positions for my DC42 IR Sensor (wich I love).

So I decided to create my own Fan Duct, wich took many hours, over 30 iterations and I tested and optimized them with some amateurish CFD simulations.

It maybe is compatible with V6 (see below)

The last 3 pictures are from a 50% scaled down print of the ksr_fdmtest printed with a Volcano Nozzle of 0.8mm sliced to 0.6mm line width and 0.2mm layer height using the Fan Duct.

Where my Fan Duct is great:

- Cools the hot filaments quite good

- Height adjustable

- Can be mounted with the DC42 IR Sensor (I can highly recommend it, but ignore the mounting points if you don't have one)

- because it just mounts directly to the Titan Aero, its highly compatible with many Titan Aero Mounts and Printers

- doesn't need support to print (if you rotate it correctly in your slicer)

Where my Fan Duct isn't great:

- Probably a bit heavy (~35g) because its optimized to be printed with a 0.8 Nozzle (0.4 should of course just work as well) and I really wanted to limit the wiggles of the construct since it holds the Z sensor!

- looks chunky

Where my Fan Duct maybe is good?:

- maybe compatible with regular V6 Hotend too (I won't downgrade back but if somebody could test it and give feedback, that would be great!)

- if it isn't compatible with the V6 Hotend, please give feedback and I'll try to make an compatible Version, probably the claws must be spread a bit more?

What you will need:

- 50x15 Radial Fan, I highly recommend a good one with 6000 RPM from Sunon! Cheap slower ones strongly decrease the cooling!

- You need 2x long enough M3 Screws, as the Mount takes additional 3mm at the Screws (it simply replaces the distance rings for the Titan Aero Mount I use)

- You need 2x 20mm M4 Screws for the Fan, 25mm should work too.

- Use a material like PETG or ABS at least for the Fan Duct itself, because PLA won't withstands the heat for long!

- Print it rotated correctly (like on the Cura Screenshot)

How you should install it:

- Make sure the Heater Block is rotated in a way so that it fits between the two claws of the Fan Duct
