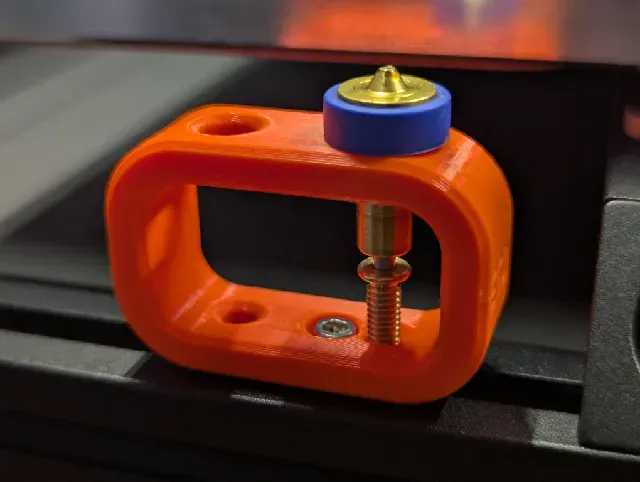

E3D Revo Nozzle Holder for Voron printers

You may screw this nozzle holder onto the frame extrusion of your Voron printer. To do so, you need M3 roll-in nuts and M3x8 screws that you are familiar with from your Voron build. The holder comes in variants from 2 to 6 nozzles capacity. For the variant with 2 nozzles, you need 1 screw and 1 nut; for the larger models, you need 2 screws and 2 nuts. Make sure that you align the roll-in nuts in a way that they do not block the holes to store the nozzle in!

There are other similar holders available, but this one is more minimalistic than the others I found and requires less space since they are designed in a way that part of your nozzle sinks into the free space of the extrusion. Additionally, in my opinion, this model is more aesthetic, but for sure I am biased here.

The models feature small E3D logos on the sides. For those who do not like this and want an even more minimalistic-looking version, I added versions without the logo as well.

Print with the materials and settings recommended for Voron builds.
