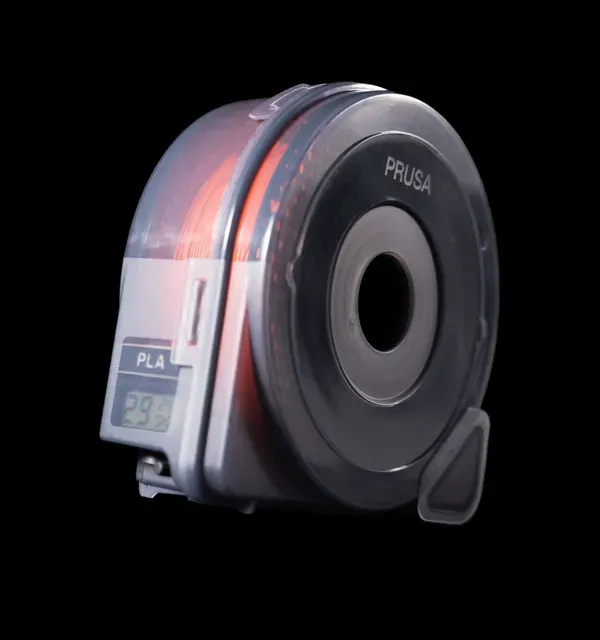

Prusa USS Drybox printable accessories

Description

These models are made to enhance your Prusa USS Drybox experience, bringing additional compatibility and expanding the range of options.

Before you start, read the article, which contains all the important info.

What can you find here?

ADAPTERS FOR PRINTERS:

Some printers are ready for the USS Drybox out of the box, while others require some printable parts. Find yours in the list below. Once the parts are printed, follow the assembly instructions article here , which includes the required fasteners.

In short, you almost always need universal spool holder parts (puck + spool holder) and part(s) based on your printer.

CORE One+ / CORE One L: The Prusa USS Drybox is ready to be used out of the box with the 3D printed (black) removable spool holder.

CORE One: If you have the non-plus version with an orange spool holder, you have to print the following parts. To change the spool holder, remove the 4 screws holding the orange spool holder and use them to attach the new universal puck.

- Universal-Spoolholder-1kg - 1x

- Universal-Puck - 1x

MK4/S (Or 3.9/S): Printed parts partly utilize the existing injection-molded spool holder, which has to be upgraded with the following parts.

- Universal-Spoolholder-1kg - 2x

- Universal-Puck - 2x

- MK-Adapter - 1x

- Filament-Guide-USS-Drybox - 1x

XL: For your XL printer, you have to print the following parts depending on the number of USS dryboxes you intend to use. For a single drybox, print everything once.

- Universal-Spoolholder-1kg - 1x

- Universal-Puck - 1x

- XL-Enclosure-adapter* - 1x

*Print this part, only if XL enclosure is installed.

HT90: For your HT90 print you have to print the HT90-Quick-connect-holder.

- Universal-Spoolholder-1kg - 1x

- Universal-Puck - 1x

- HT90-quick-connect-holder

- HT90-quick-connect-base*

*HT90-quick-connect-base is not mandatory, but includes a small latch for more secure connection between the base and the holder.

FILAMENT LABELS:

The Prusa USS Drybox package contains a basic set of cardboard labels that can be used, but printed labels are much more convenient. In the Filament labels folder, you can find models with pre-made texts, plus one blank label. The files are ready to be modded - add color change, modificators, patterns... anything you want!

We recommend print from black/white colors for better clarity, but you can try different options.

PTFE ADD-ONS:

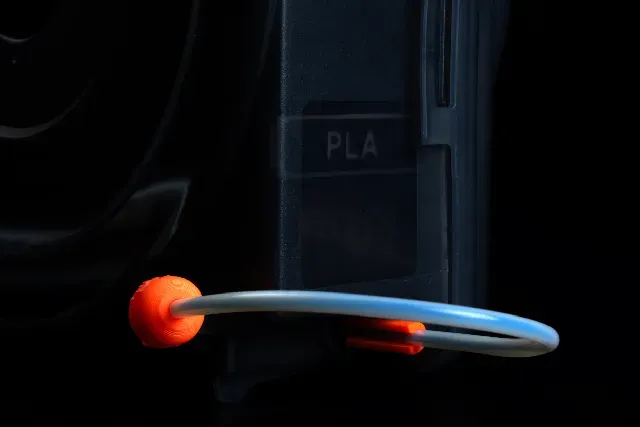

PTFE Stopper: A simple clip to put on the PTFE tube as a stopper to prevent the tube from moving.

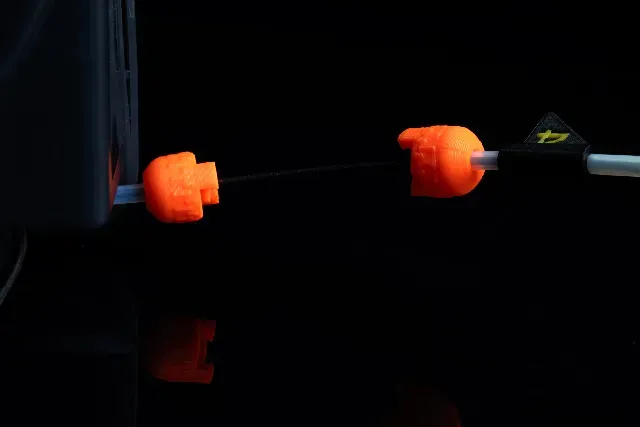

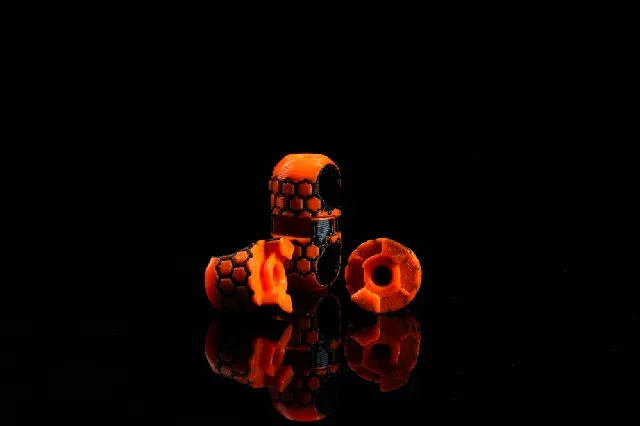

PTFE Connection: An easy, but genius way to connect two PTFE tubes together (Perfect for CORE One+ and CORE One L printers).

A massive shoutout to @jack , who not only agreed to use his design, but also modified the connector design to be more "Prusa" style.

Assembly:

For an instructions with photos, please check Quick Connect model from @jack

Put some painter's tape around the tube (leave >2 cm free) to get a better grip.

- Start screwing 10mm in.

- Wait for 5 minutes so the PTFE will deform and adapt the thread.

- Lock it into its final position by pressing and screwing until a tiny end protrudes.
