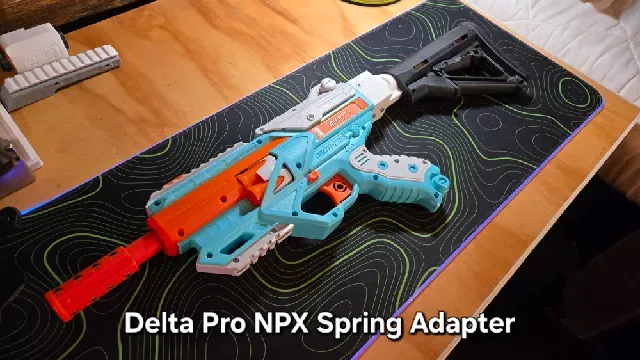

Adventure Force Delta Pro Buffertube/NPX Spring Adapter

Performance (Dart Zone Springs)

- Low Power NPX Spring : Light prime ~110 FPS

- Stock NPX Spring : Stiff prime ~150 FPS

- High Power NPX Spring : Very stiff prime ~180 FPS.

https://dartzoneblasters.com/collections/darts-accessories/products/nexus-pro-x-high-low-powered-spring-set

*I do not have a chrono so these FPS numbers are rough estimates compared to other blasters *

Hardware

- 6 x M3 Hex Nut

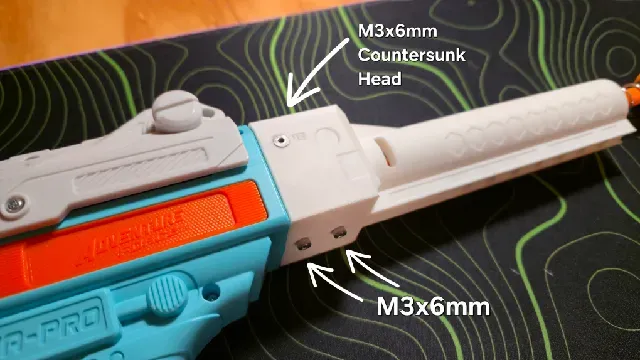

- 4 x M3 Screws (Countersunk Head)

*Warning. This puts precompression on untrimmed NPX springs. I highly recommend removing full length springs when not in use. There is a small window in the buffertube that allows you to view if there is a spring inside *

Assembly

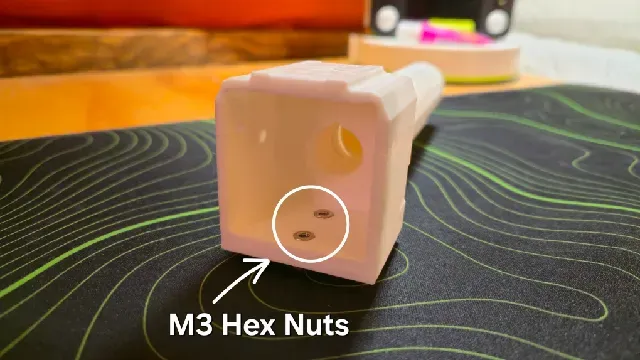

1. Stack two M3 hex nuts together and thread onto the end of a screw.

2. Use the screw as a guide to hammer the hex nuts into the cutout in the blaster.

3. Once in place, remove the guide screw and repeat on the other side.

The rest of the assembly should be easy to reference to the photos but if you have any questions or need something adjusted, just message me!

Filament

- Elegoo PLA Plus (Orange and White) https://us.elegoo.com/products/elegoo-pla-plus-3d-printer-filament-1-75mm-colored-1kg
