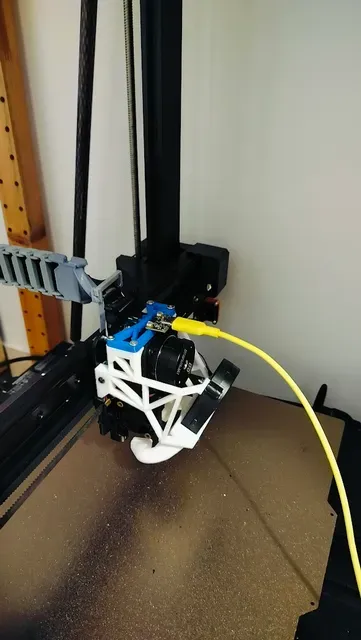

Artillery Sidewinder X4 fan shroud

Artillery Sidewinder X4 Pro and Plus hotend fan shroud. A minimalistic version with some improvements.

On original design the duct has very thin walls and is difficult to print, lot of materials leave holes in duct walls. This has thinner walls but still needs to print in 0.08, 0.10, or 0.12 resolution.

There's a top reinforcement with a custom designed bracket, but it has holes for Mellow Fly USB-C ADXL345 resonance module.

For people who own stock magnetic ADXL345 module, you can glue a square magnet on top of the bracket for the resonance module.

Best printed in PETG, ABS, ASA also 0.20, but the duct needs better resolution.

Hardware needed: 4x M3x10 2x M3x5 (for ADXL345 module)
