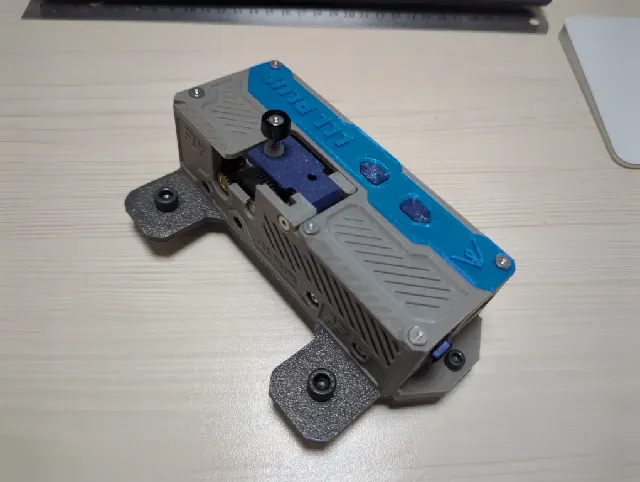

3030 mount for Mellow LLL Plus filament buffer

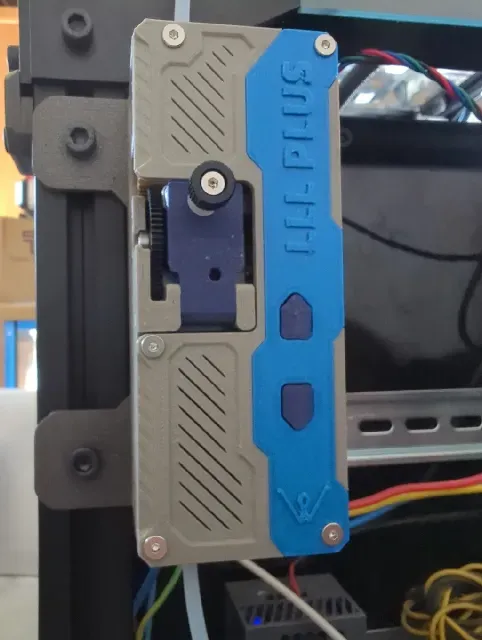

I designed this adapter plate to fix the Mellow LLL Plus Filament Buffer on my Ratrig V-Core 3.1 which has 3030 extrusions. Obviously, it can fit any printer or enclosure using 3030 extrusion.

The plate is reversible, you can have the ears on either side of the filament buffer.

Hardware needed :

- 2 M4 *12mm screws (or longer) and 2 M4 nuts to fix the mount on the Filament Buffer

- 2 M6*12mm screws and M6 T-nut to fix the mount to the 3030 extrusion (M5 screws/T-nuts will be good also I think)

Printed with PLA, as temperature are not high behind my printer. I had to drill a little the holes to fit more easily the screws, but it may be an issue on my side.
