Modular 10 Inch Server Rack

What is it?

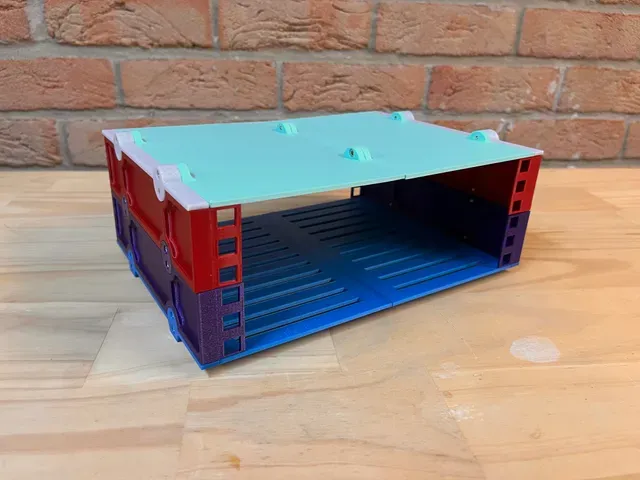

Its a fully modular, easy-to-print and FREE 10" mini server rack perfect for homelab projects. All parts fit together with M3 bolts and are standard rack unit (RU) / 10" server sizing to build an infinitely stackable mini rack. Design works well with all regular 10" server components. Works with standard server hardware and fasteners ie. M6 cage nuts and screws.

How to print?

No supports, 0.3mm layer height (or whatever).

Fastener hardware:

M3 x 8 socket head bolts + M3 brass heat inserts (like these )

- OR

- M3 x 12 socket head bolts + M3 nuts

Interfaces with

- 1U 10" Dual 3.5" HDD Caddy Holder

- 2U 10" Rack ATX PSU Mount

- 1U 10" Server Rack Tray

Versions

- Version 1.0.0: Initial publish/release.

- Version 1.0.1: Circle_lock_plate.stl diameter -0.5mm for better interface with rack sides.
