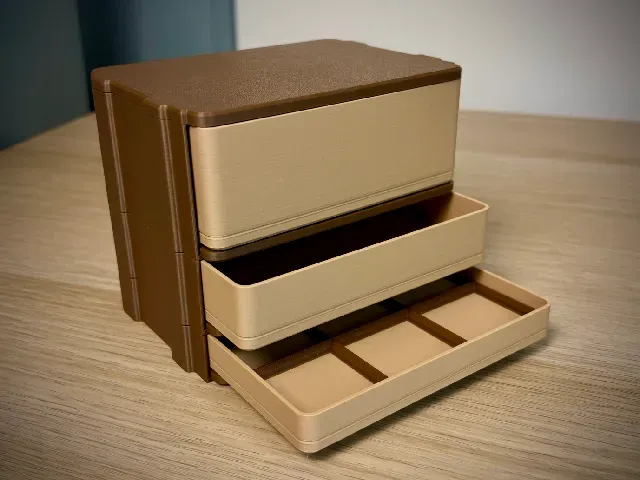

Modular Desk Drawer 2x3 Gridfinity | Push Lock

The Modular Desk Drawer combines a modular design , a Push Lock mechanism , and Gridfinity compatibility to create a simple desk storage solution. The modules are available in three sizes and can be stacked to fit your workspace ⚙

- Gridfinity 3×2 Size – The drawer is designed to fit a 3×2 Gridfinity base, making it easy to integrate into existing Gridfinity setups. ⚙- You can find Gridfinity Boxes here , or in the files.

- Modular Design – Individual modules can be stacked to create a storage system that fits your workspace.

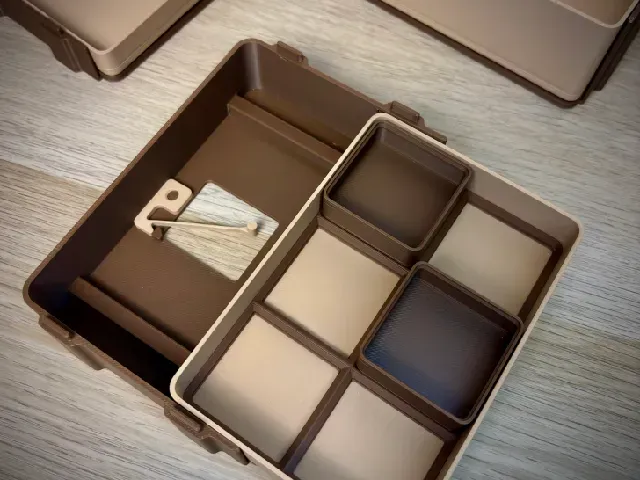

- Push Lock Mechanism – The drawer uses a push mechanism with a rubber band. Recommended sizes are 35×1.4 mm or 40×1.4 mm .

- Replaceable Pin – The 06_Pin is designed to be screwed in, allowing easy replacement if it gets damaged. Printing the pin in PETG is recommended for better durability 🔩

- Three Drawer Heights – The drawer footprint is 140 × 100 mm and is available in three heights:

- H0 = 22 mm

- H1 = 32 mm

- H2 = 52 mm

- Video Here
