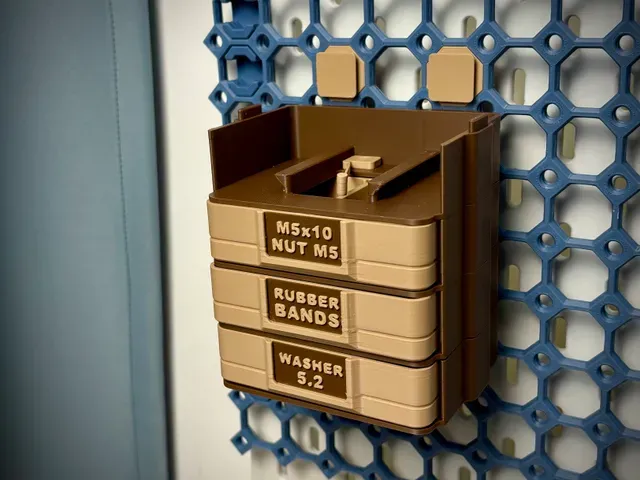

Modular Push-Push Drawer | Multiboard Organizer

Modular Push-Push Drawer is a modular storage system with a clean rectangular design, perfect for organizing screws, nuts, small tools, and other workshop essentials ✨. Thanks to the push-push mechanism, the drawers stay securely closed and open effortlessly with a simple press 🔒.

- The system is designed for the Multiboard, but it can also be used freestanding on your desk.

- Internal drawer dimensions: 89 × 51 × 14 mm

- Single tier dimensions: 94 × 70 × 25 mm

- Drawer divider — the drawer can be split into two sections

- Easy stacking — tiers align using small alignment tabs that smoothly fit together

- Top cover required — print 05_Lid to close the last tier neatly

- Custom label support — text can be easily added in the slicer; a blank label is included in the print profile (06_Label)🏷

- Elastic band required: 1.4×40 mm (1.4×35 mm also works)

- Multiboard compatible — insert the 08_Multiboard_Snap into the slots in 02_Case to mount the organizer on your Multiboard panel.

- Desk use — the organizer can also be used on a desk. For better stability, lightly glue the tiers together.

- I recommend gluing the 05_Lid in place

- The drawers should never lift upward — this can cause the push-push mechanism to malfunction. 🔧

- Supports must be enabled for 01_Box ❗- I recommend drawing them manually (Normal – Manual), as shown in the image in the attachments. 🔧

- Video Here
