Minimalist Housing for Logitech Z333 (Space-Saving Mod)

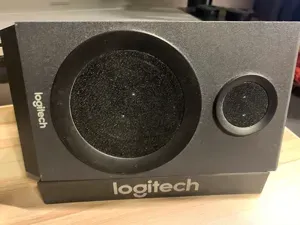

Since upgrading to a larger screen, my Logitech Z333 speakers no longer fit properly on my desk. I realized the original boxy housing is unnecessarily large—mainly because the included "tweeters" are actually just plastic fakes with no function.

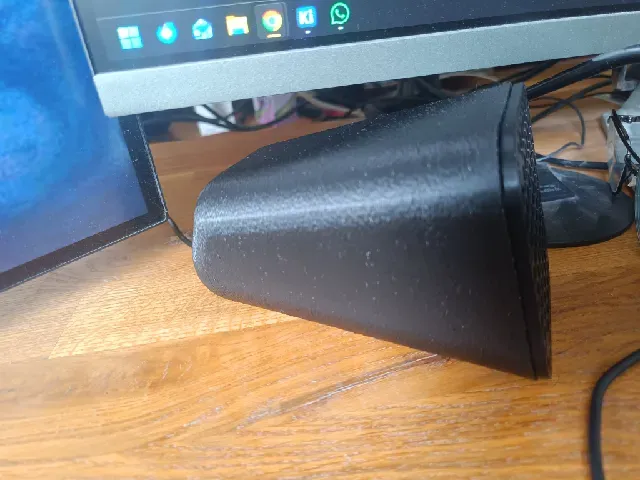

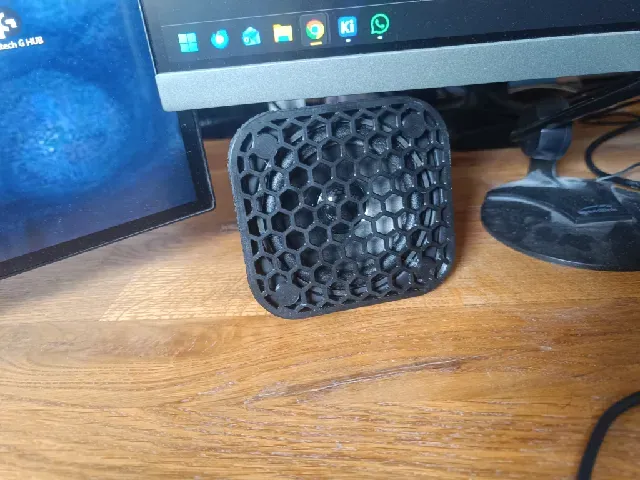

This 3D-printed housing eliminates the wasted space. While the new design is slightly deeper trying to compensate a little bit for the reduced height and width while sporting a much smaller footprint. Since the Z333s aren't "high-end" audiophile speakers to begin with, I haven't noticed any difference in sound quality after the swap.

Note: This project reuses all internal components from the original speakers.

Required Parts:

- M3 Heat Inserts: 8 pcs

- M3 Screws: 8 pcs (6mm length is sufficient)

- Magnets (8x3mm): 8 pcs (to attach the grills to the speakers)

- Soldering Iron: Needed to desolder and resolder the speaker wires during the transfer.

- Adhesive: Hot glue or superglue to secure the cable exit at the rear and the magnets to the front grills

Printed from PLA, Fuzzy Skin on the outside (but not the grill)
