BidonLED - Ambient Lamp - Free LED Strip Version

This free version is compatible with standard LED strip lights, making it simple to assemble and use.

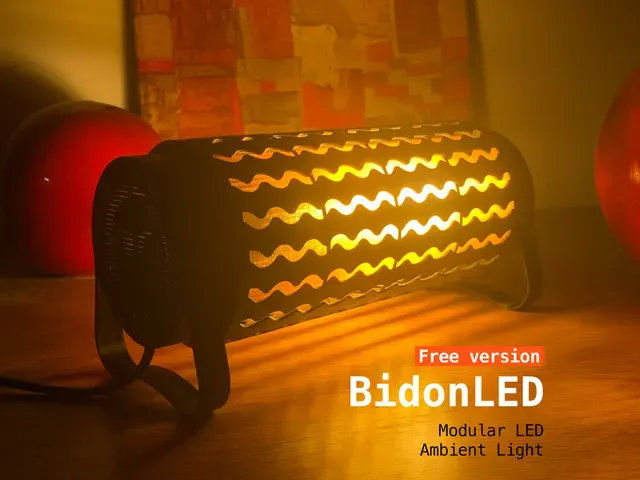

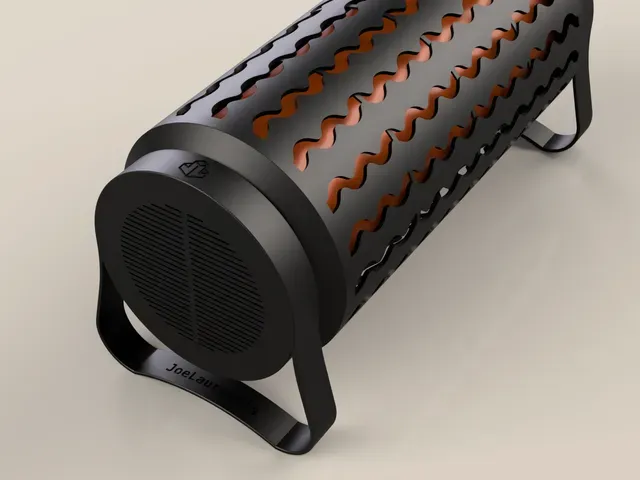

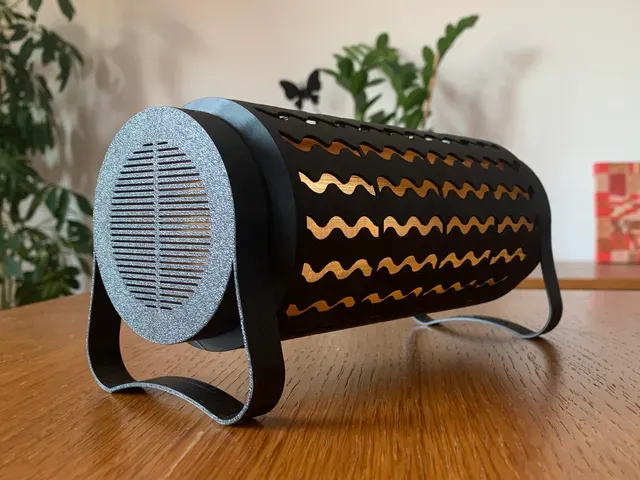

The cylindrical lamp, measuring 217 mm (L) × 106 mm (H), produces a soft ambient glow, perfect as a night light, mood light, or decorative element for desks, shelves, or relaxing indoor spaces.

The design blends modern minimalist aesthetics with subtle industrial influences, creating a versatile and stylish lighting solution.

GET THE FULL 4-IN-1 VERSION on my Profile

Upgrade to access all 4 interchangeable lighting modules (E14, E26/E27, LED panel, LED strip) and get the complete modular system.

TOOL-FREE ASSEMBLY

The entire system is designed for precise press-fit assembly.

• No screws

• No glue

• No additional hardware

All parts fit together using carefully tuned tolerances.

PARTS

The lamp consists of four printed components:

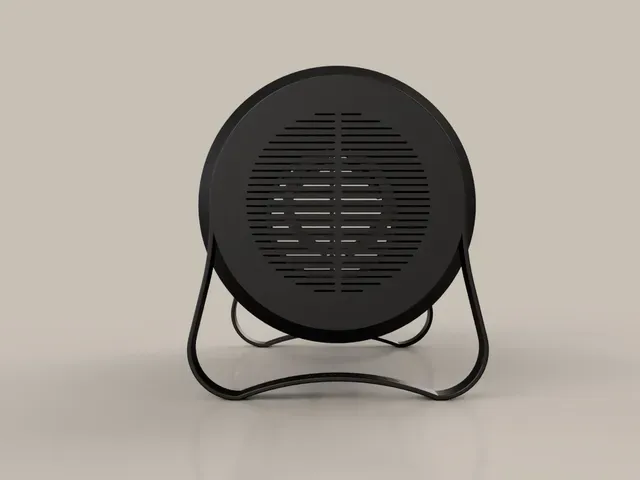

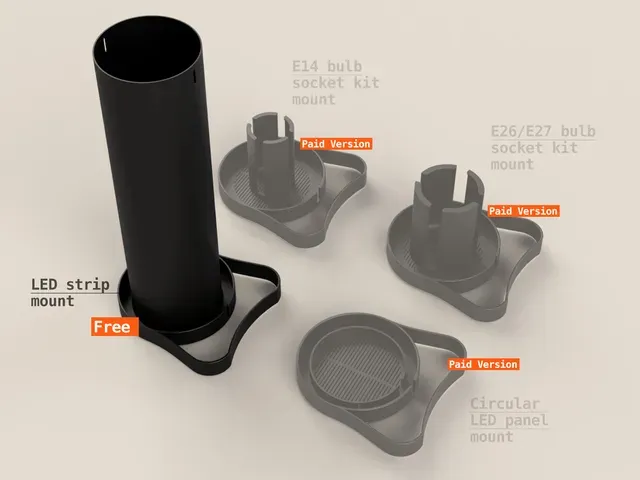

• Two end caps (plain end cap + LED strip mount end cap)

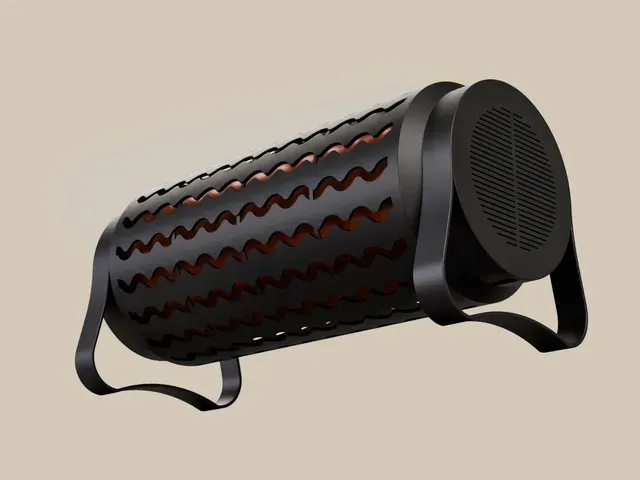

• A perforated outer cylindrical shell

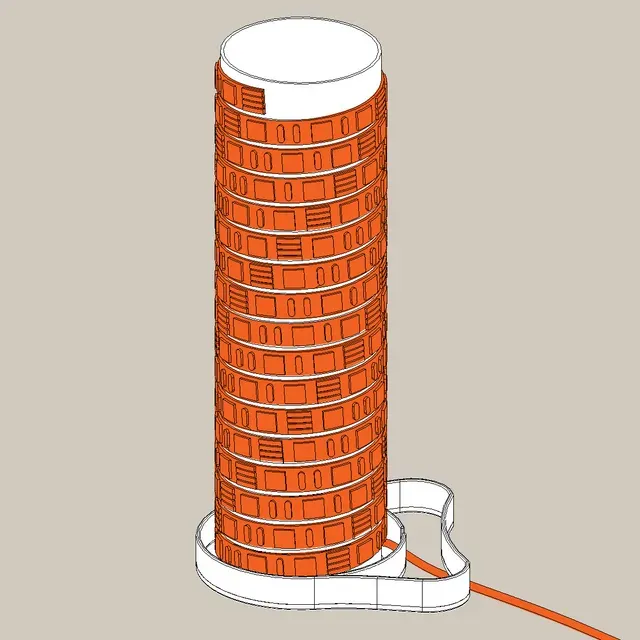

• An inner light shader/diffuser

STL models included:

• EndCap_Plain.stl

• EndCap_LED_Strip_Mount.stl

• Outer_Cylinder_Shell.stl

• Inner_Diffuser.stl

For best results, print the inner shader using translucent filament to achieve smooth light diffusion.

Matte filaments work particularly well.

The model is optimized for easy printing without supports

Tested with PETG, also suitable for PLA.

Recommended Print Settings

Layer height

0.20 mm recommended (variable layer height is recommended to improve surface quality)

Walls

2 walls

Infill

10–15%

Brims

You will only need small 10mm brims on the perforated cylinder shell and on the interior diffuser.

Supports

Not needed

Seams

Pay attention to seams: align seams in hidden areas, preferably on the bottom side.

ASSEMBLY

1. Print all components using the included files.
