Handlebar/Tube phone mount (no screw!)

PROJECT PRESENTATION

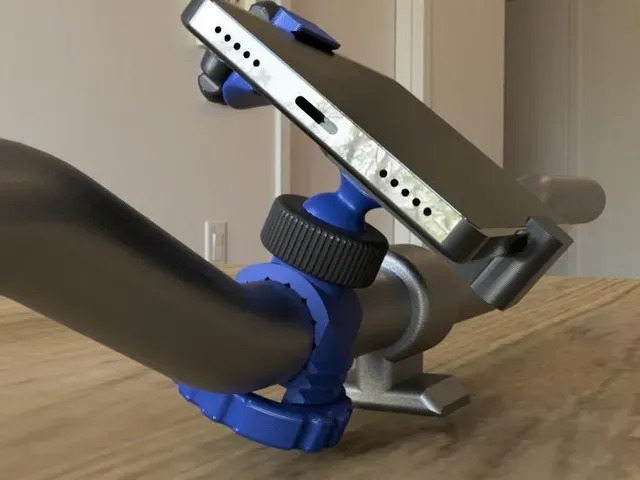

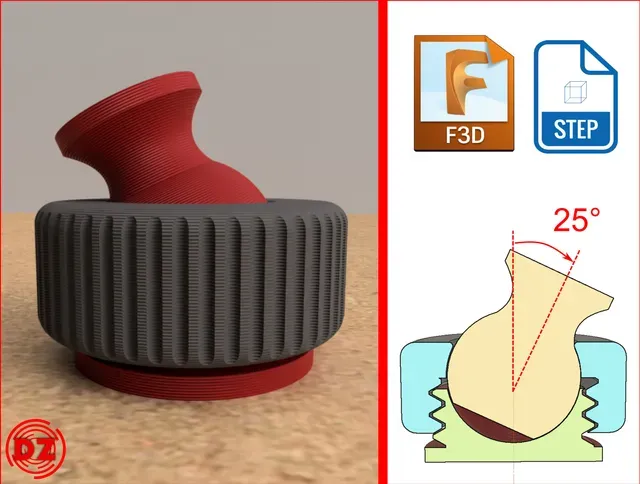

- This project is a tube clamp allowing to maintain a phone in all possible positions thanks to a ball joint on a bike, a motorcycle, a quad bike, or any tube !

- The assembly is done without any screws , which however does not affect its robustness.

- The goal for me is to create other supports that can accommodate this ball joint for other applications, such as in a car, for a camera stand, etc...

The idea come by seing a Cable Ring Clip Organizer from Idee_Design => https://www.thingiverse.com/thing:4730897

#### Enjoy printing !

UPDATE

14/02/2021

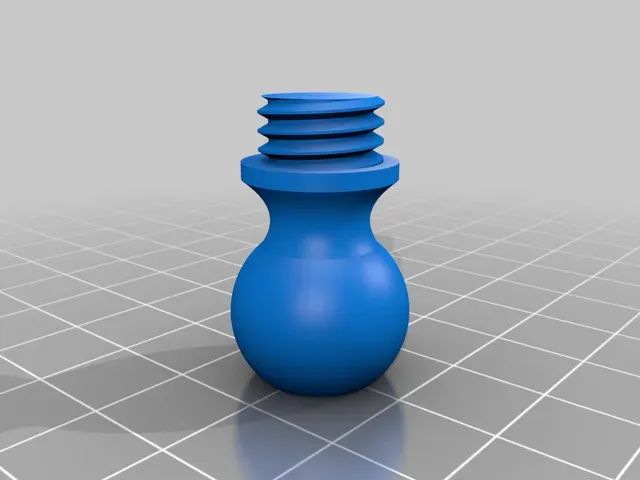

- The step of the part " Screw " was not the right one (22x3 instead of 22x2). I apologize for the potential inconvenience. The component has been updated.

- I took the opportunity to make a Right Step version, and a Left Step version.

Please note:

I don't customize my designs, to the person, because I share them for free. A global solution is given (adapted to the greatest number), but I can't do it on a case by case basis, without remuneration for the time spent.

Print Settings

Rafts:

Doesn't Matter

Supports:

Yes

Notes:

| | | --- | | Printer Brand: | Creality   | Printer Model: | Ender 3 | | Raft: | No   | Support: | Yes | | Resolution: | 0.2 max   | Infill: | 10-15% | | Filament Material: | Best PETG or ABS   | Filament Color | Doesn't matter |

About PLA :

PLA may be brittle when the mount is installed, which requires a slight deformation of the part, especially for large diameters. Unless you have a very deformable PLA, I would not recommend its use for this part.

Moreover, PLA is less suitable for outdoor use than PETG or ABS.

About the model

Which files should I use?

In the .zip folders, which you will have to unzip, you will find all the parts with different diameters.

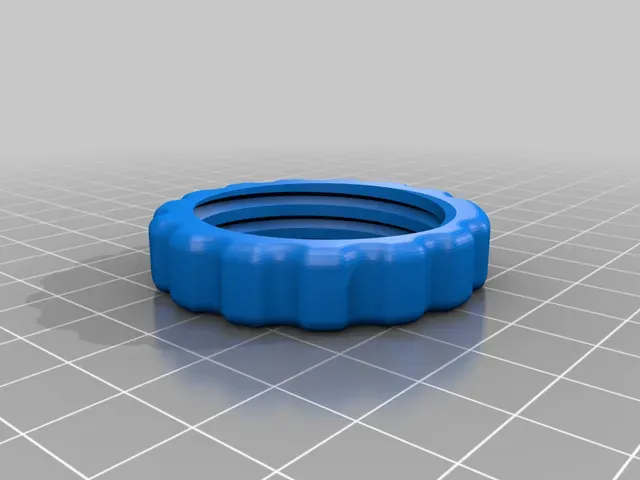

You will need to take a nut and a frame.

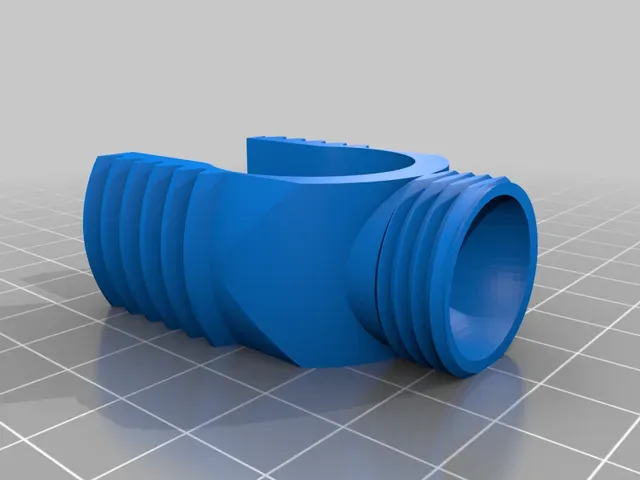

* If this is the first time you print the phone holder , choose in the folder Frame R which has a step to the right for the mounting of the ball joint. * If you have already printed the phone holder from Tripod Phone Stand (no screw!), you will probably need a left step for mounting the ball joint. Then choose your frame in Frame L .

The parts are already well oriented for easy printing.

Available Tube diameter

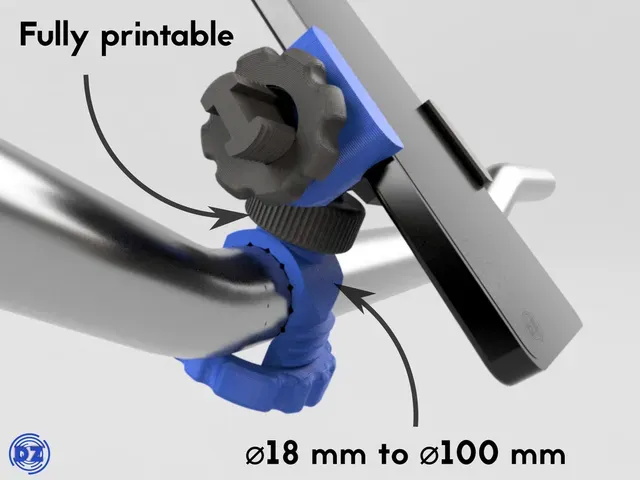

With this model, you can access mount from 18mm diameter to 100mm diameter.

If you encounter any problem with a particular diameter, do not hesitate to leave me a message so that I can help you.

Also, if the diameter you are looking for is not available, please let me know. Keep in mind, however, that due to their deformability, it is possible to use the size above or below for .5 diameters.

Compatible phones

- The maximum supported phone width is 80mm , and the minimum is 50mm .

- This covers 99% of the telephones on the market. Width is usually between 70 and 75mm.

- A remix is available with longer arm if needed: https://www.thingiverse.com/thing:4722194

- The maximum thickness is 10mm .

- Not suitable for a tablet

Assembly instructions

For the tube clamp
