PrusaBox adapter hinged for "MMU2S Buffer (inspired by RMU Buffer)"

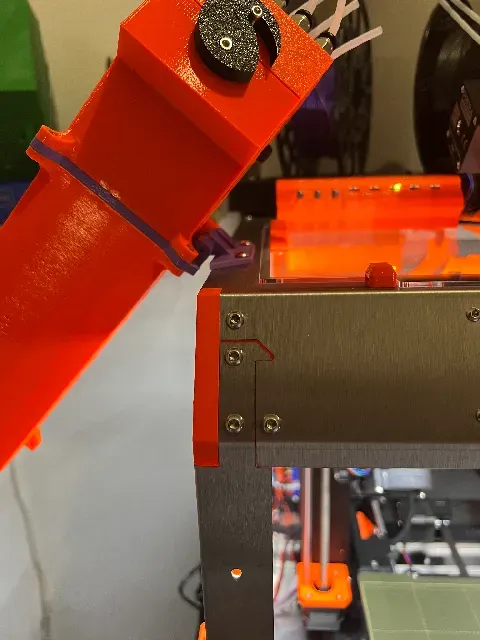

This is the hinged version of my design PrusaBox adapter for "MMU2S Buffer (inspired by RMU Buffer)" so that you can also open the side door with minimal effort. I kept the original box hinge design language so that it does not appear that it does not belong on the box.

Following my MM2S assembly I had to mount some kind of buffer on my PrusaBox. The buffer I decided to use is MMU2S Buffer (inspired by RMU Buffer) .

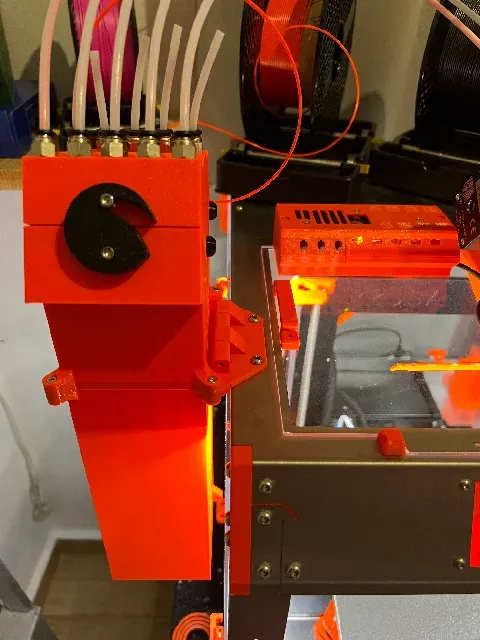

This adapter will mount the buffer on the side of the PrusaBox on the two holes that already exist on the top cover for the inside spool holder mod.

My design was inspired by this , but it is a complete redesign from the ground up. So this is not a remix, and the part linked does not fit my buffer.

Assembly steps

- Screw the box part on the box - Align the other part, with the hinge on the part that is screwed on the box - Insert the pins (they can only be inserted from the back side) - Screw the top part of the buffer - Screw the bottom part of the buffer - Done Assembly notes

- If you face any difficulty to insert the pins, use an allen key to push them - You have to push both pins from the same side of the hinge (back side, towards PrusaBox Logo) - Do not mount this part on the buffer before fixing it on the box, the hinge cannot be assembles otherwise Filament

PETG or PLA

BOM

2x M4x10 Screws (Provided in the PrusaBox Kit) 2x M4 nuts (Provided in the PrusaBox Kit) 2x metal pins that was used for the top door hinges

Print settings

Perimeters : 6 Fan speed min : 60% max : 61% Bridges fan speed : 70% Layer height : 0.20 Infill pattern : Gyroid
