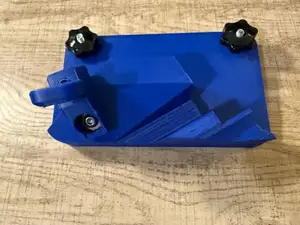

Tool lathe sharpening JIG

Hello Gentlemen

Starting a project to make a jig for sharpening the lathe tool, this project will be create to use bar steel, few welding point, and no machining work.

I think that will take a couple of months to be finished

Regards

Jonweb

updated 20211128

please use for the bottom plate steel material, while for top plane i cut an old aluminum straightedge used fro build my house, the other parts could be printed in PETG or ABS, on parts i cancelled the hole since we can make wherever you want
