Festa 20316 Hex Drill Bit Organizer

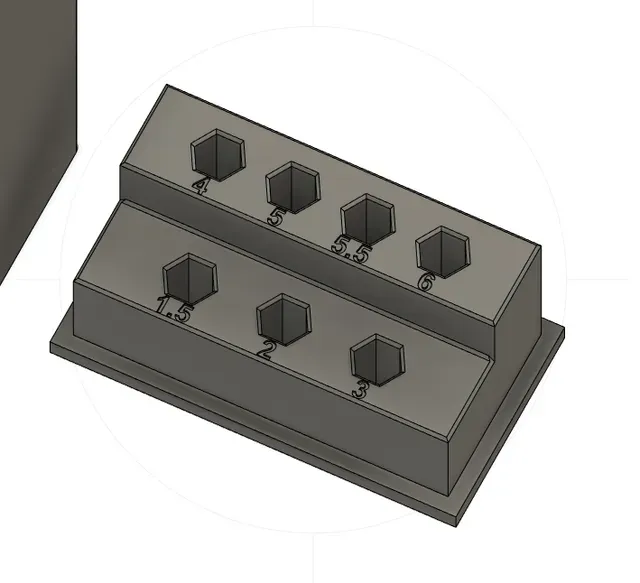

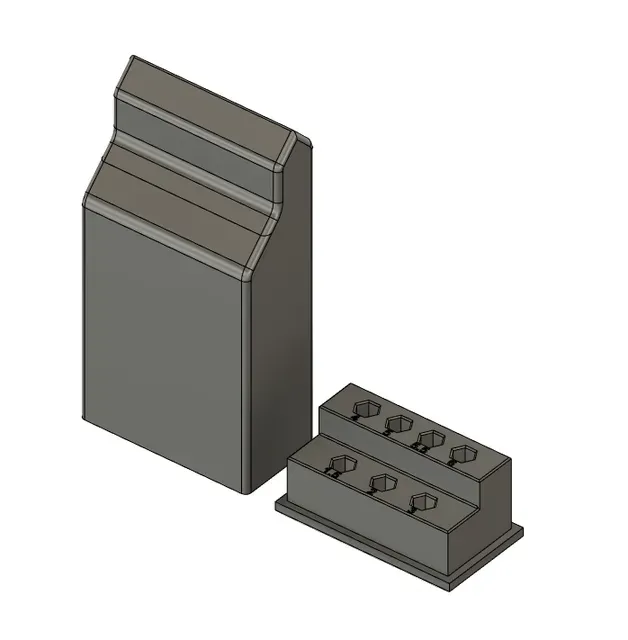

A compact organizer designed specifically for the Festa 20316 hex-shank drill bit set. I designed a unique stepped lid to ensure that even the smallest bits from the set stay securely in place and don’t fall out during transport.

The whole design is optimized for support-free printing. I also added engraved size markings on the base that match the Festa set for quick and easy identification. A simple, practical tool that fits perfectly.

Print Settings

- Material: PLA

- Layer Height: 0.2 mm

- Infill: 15% (Grid or Gyroid)

- Supports: Not needed (thanks to internal chamfers)

- Adhesion: Brim recommended for the tall lid

Assembly Instructions

- Clean the brim from the bottom edges.

- Insert your Festa 20316 bits into the corresponding holes.

- Slide the lid on – it’s a friction fit, so it stays on tight but is easy to open.
