Adventure Force Axis Switch Pro Magazine Switcher

Description : This model allows the user to change the stock magazine switcher on the Adventure Force Axis Switch Pro with that is more user friendly. It takes away the need to pull in the handle before the switch can occur and it gives a very satisfying click as the switch is made. This part requires no permanent changes to your blaster and is still just a bit over half the length of the original handle.

Materials : 4x M3x12mm

Instructions : I would suggest printing with 3 walls, 20% gyroid infill and the inside of each part pointing down towards the plate. Supports are recommended and this is how the 3mf is set.

Due to the tolerances from Adventure Force, I cannot get the diameter of the handle 100% perfect for every user. If it's too tight, you may need to add a negative cylinder inside the parts to give you more space. If it is too loose, add a tiny bit of duct tape to the orange tube to make it a bit thicker. This also gives the handle something to grip to help keep it from slipping off. I used roughly 4mm x 6mm of tape in my blaster.

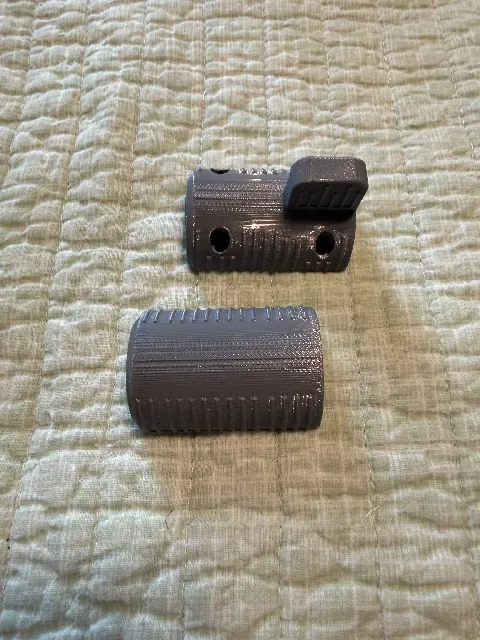

1. Remove the 4 screws to take off the original magazine switching handle. There will be a spring holding one part. It has never flown away on me, but springs have that ability. 2. Remove the screw and white part on the end of the orange tube. 3. Set all of these parts aside. They will not be needed. 4. Align the top part of the new handle (without the tab) at the top of the orange tube. There is a bit at the end of the handle that fits in the notch at the end of the tube for alignment. 5. Align the bottom part of the new handle (with the tab) at the bottom of the orange tube and secure with the 4 screws.
