Nerf Rival Perses Extended Hopper

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
3MF
  • 23 Лайки
  • 154 Загрузки
  • 0 Напечатали
  • 0 Комментарии
  • 518 Просмотры

Автор:OUT OF DARTS

Опубликована

Описание

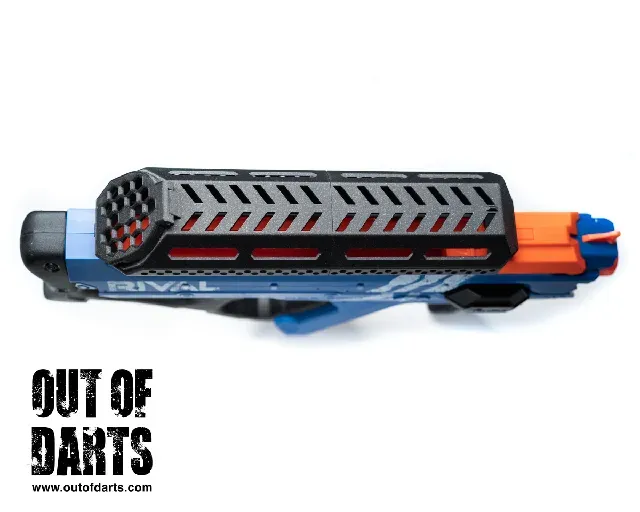

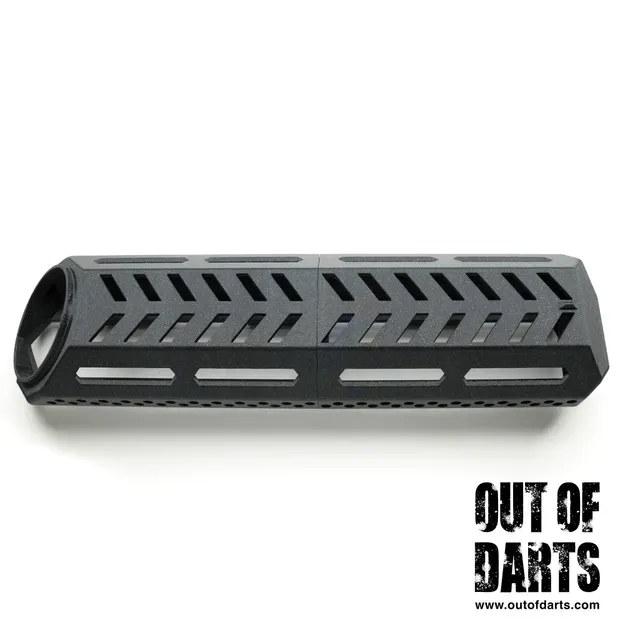

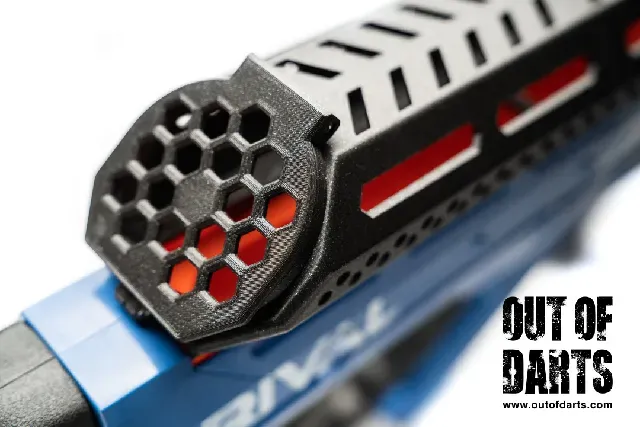

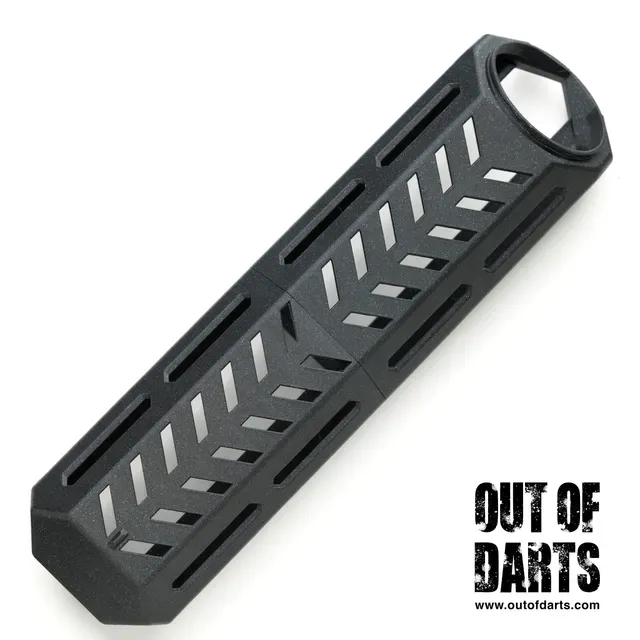

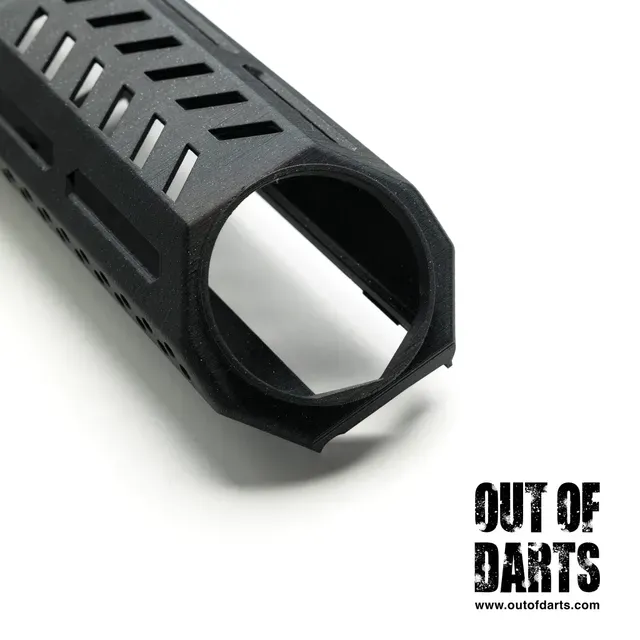

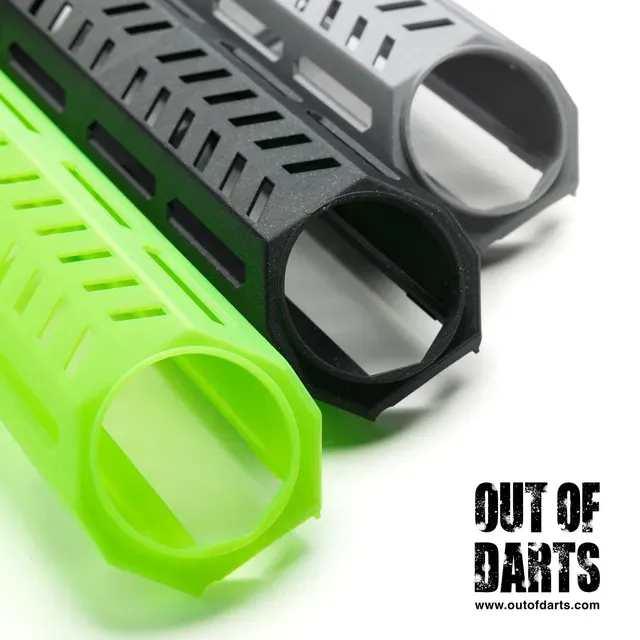

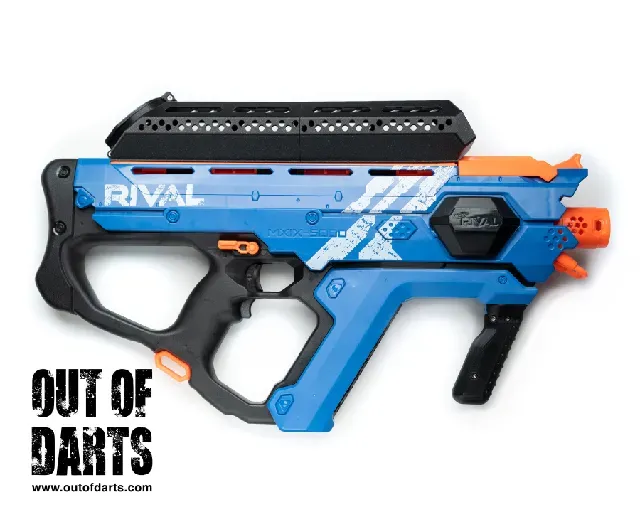

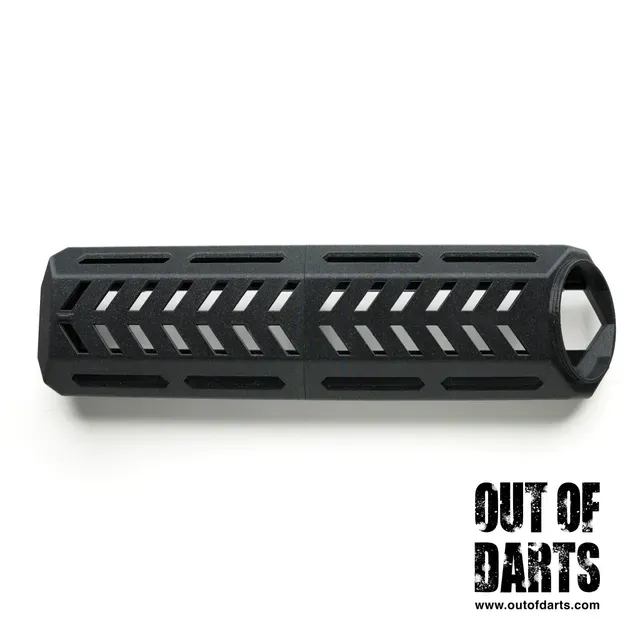

The Perses Extended Hopper is a drop-in mod for the Nerf Rival Perses full-auto flywheeler blaster from 2019. It increases the blaster's ammo capacity from 50 to 160 rounds while maintaining its sleek look and feel. Additionally, its standard 75mm opening uses either the included magnetic lid or optional paintball "speed-feed" quick-loading gates for faster reloads from a dump pouch or pods.

FEATURES: • Nerf Rival Perses Extended Hopper • 160 rounds of total capacity (including bottom stock hopper) • Paintball pod-compatible • Paintball speed load gate compatible (most brands) • Drop-in replacement • Sized exactly to snap in place on the hopper • Magnetic Lid requires some CA glue for press-fit magnets

FILES INCLUDED: • 1 Bambu Studio 3MF File with saved print settings

RECOMMENDED PRINT SETTINGS: • Quality: No scarf seams or joints • Strength: 4 wall loops • Others: no-brim

*Slower printing speed is recommended for cleaner printing of tall hopper parts

HARDWARE NEEDED ( for the lid ) : • 1 M3 x 35mm Socket Head Screw • 1 M3 x 12mm Socket Head Screw • 2 M3 Hex Nuts • 2 1/4in Neodymium Magnets
