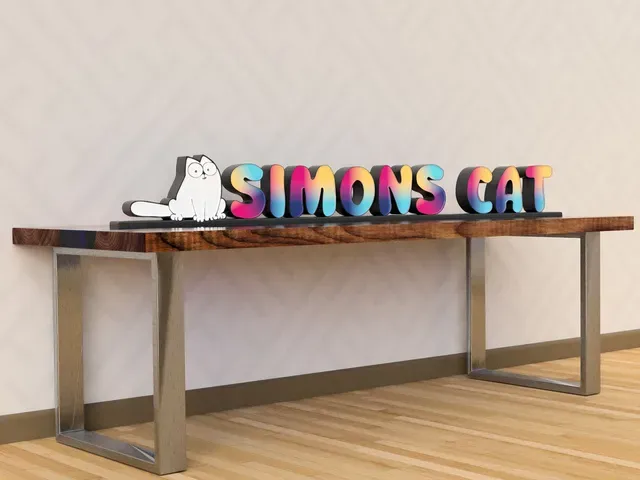

Simon's cat glowing wled or led

Fits in the project Glowing LED and WLED all alphabet letters and all numbers 10 cm high. https://www.prusaprinters.org/prints/149829-glowing-led-and-wled-all-alphabet-letters-and-all-

You are doing me a big favor by clicking the Like button :-)

Shopping list for use with WS2812B leds WS2812B RGBW Led (AliExpress) W for Cool White Wemos D1 Mini V3.0.0 (AliExpress) Wire thin 28AWG (AliExpress) Black Filament - Sunlu Black Warm white Filament – E-Sun white-B (Not Snowwhite) Solder tin Glue 5 Volt usb micro adapter

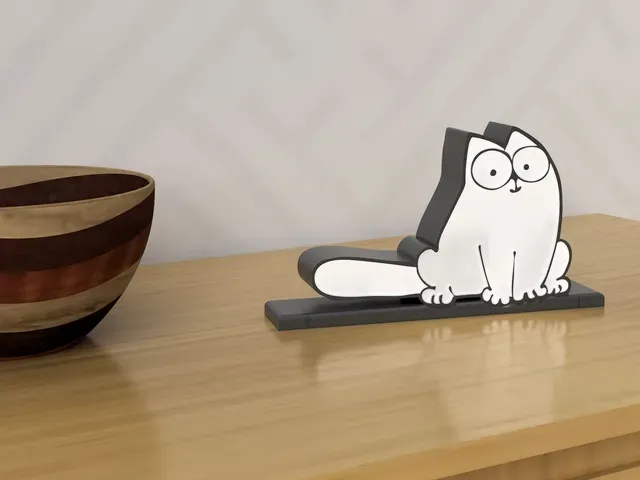

Print the cat in black or other non-translucent color. Diffuser warm white or white, for example, Esun white-b. Print only the parts that you need.

Put some glue on de edge of the lens, and place the lens in the letter press firmly.

If there is a mistake let me know and I fix it. For questions send me a message. I would like to help you make this beautiful project ;-)

Programming the Wemos its very simple, look here: https://kno.wled.ge/basics/install-binary/ Metthod 3: ESP Home Flasher tool

Link to the flasher: https://github.com/esphome/esphome-flasher/releases

Link to the bin file: https://github.com/Aircoookie/WLED/releases

Open the ESPHome-Flasher-x.x.x-Windows-x64.exe 1. Choose the comport that your WEMOS is on 2. Browse in the flasher to WLED_****.bin 3. Click on Flash Esp

Thats it

If you don't want to use the WS2812B, you can also use a normal diffused 5 mm LEDs. An adapter is included for this.

In my previous project there are pictures about the LEDs and the connections: https://www.prusaprinters.org/prints/109865-glowing-wled-or-led-all-alphabet-letters-and-all-n
