High-Torque T-Handle Pin Vise & Hand Drill

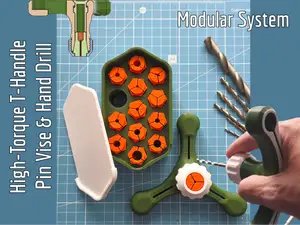

High-Torque T-Handle Pin Vise & Hand Drill (Modular System)

Expand your 3D-printed tool collection with this heavy-duty, high-torque T-handle! This model is the latest addition to my Modular Tool ecosystem, designed specifically for tasks that require extra twisting force, such as manual drilling, tapping, chamfering, or driving stubborn screws.

This handle is fully compatible with the collet clamping mechanism from my previous Modular Screwdriver/Jig Saw model. However, this release introduces a brand new set of collets specifically designed to securely grip round drill bits of various diameters, up to 10mm!

To keep everything organized, this project also includes a sleek, custom-designed storage box with a sliding lid that holds up to 13 different collets.

Key Features:

- High-Torque Ergonomics: The 3-spoke (tri-lobe) T-handle design fits perfectly in your hand, allowing you to apply maximum downward pressure and rotational torque effortlessly.

- Universal Drill Bit Support: Includes collet files to clamp round drill bits securely, supporting sizes up to 10mm in diameter.

- Ecosystem Compatibility: Uses the exact same proven threaded collar and collet dimensions as my previous tool handles. Mix and match!

- 13-Slot Storage Box: A dedicated, low-profile organizer box with a smooth-sliding lid keeps all your different-sized collets safe and sorted on your workbench.

- No Extra Hardware: 100% 3D printed. No screws, springs, or glue required.

Printing Instructions:

- No Supports Required: All parts are designed to print flat and cleanly without support material.

- Material: PETG, ABS, or Tough PLA are highly recommended for the handle to withstand heavy twisting forces.

- Multicolor Design: The two-tone look on the handle and the storage box lid can be easily achieved with a simple "Pause at height" (color change) command in your slicer. No AMS/MMU required!

- Infill: 12-20% infill (Honeycomb or Gyroid) for the handle and locking nut to ensure maximum structural strength. 10-20% is sufficient for the storage box.

- Walls/Perimeters: Use at least 3 walls for the handle and threaded parts for optimal rigidity.

Build your ultimate custom toolset today! Don't forget to share your makes and color combinations.
