BIQU H2 for Tenlog TL-D3 Pro and Hictop D3 Hero

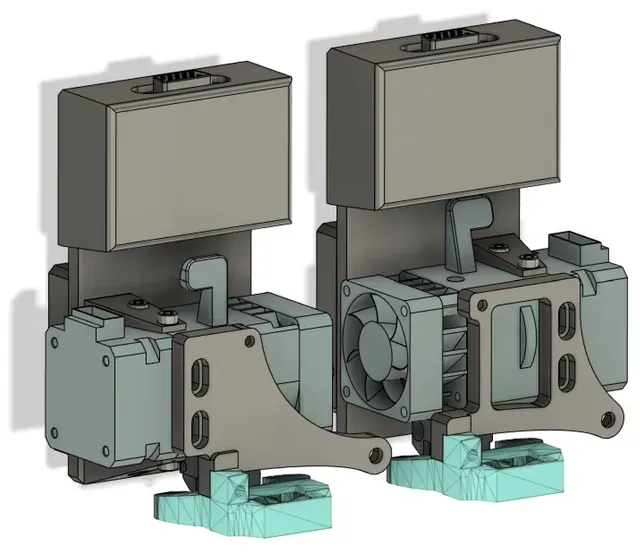

This is a mounting system to use two BIQU H2's with a Tenlog TL-D3 Pro or Hictop D3 Hero. The E2 adjustment concept came from MaracMB's design for the Hemera mount. I used vampyrex13's (which turned out to be Schwab_Manufacturing_Solutions' design) 5015 fan mount and duct for E2, and modified the mount for E1. I also used vampyrex13's BLTouch mount.

I designed this to put the nozzles as close to the stock setup as possible. The nozzle location should be pretty close to dead on in the X-axis and Z-axis, but about -10mm in the Y-axis. Be weary of the bed clips if you are using the glass bed.

Included with the STL's is an assembly guide as well as a compressed Fusion 360 assembly file (f3z). Please don't ask me to make modifications for you unless you find something that doesn't work for its intended purpose. If you would like to modify something to work for your unique setup, please do so yourself with the included Fusion file.

Sources: https://www.thingiverse.com/thing:4169552 https://www.thingiverse.com/thing:4976865 https://www.thingiverse.com/thing:4893522
