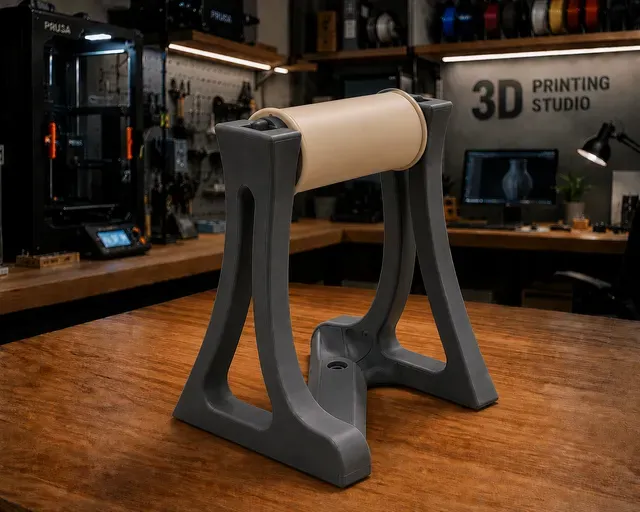

Filament Spool Holder #003 (Simply Design)

A clean and modern filament spool holder designed for reliability, simplicity, and smooth everyday printing. This project focuses on a compact footprint, elegant curves, and effortless usability while keeping the assembly extremely simple.

The holder provides smooth spool rotation, helping improve filament feeding consistency during long prints. Supports are generally not required in the main support, but I recommend to use it with the roller for do it properly.

Main Features

- ✅ Simple and easy assembly — only 2 printed parts

- ✅ Completely tool-free assembly ( no screws, no bearings, no tools)

- ✅ No bearings required

- ✅ Compact and stable futuristic design

- ✅ Smooth spool rotation for improved filament feeding

- ✅ Optional M4 mounting holes for permanent desk/shelf installation

- ✅ Optimized for standard 1kg filament spools

- ✅ Minimal material usage while maintaining rigidity

- ✅ Printing time : 5h12m, Filament usage : 152,27 gr.

Bearings Version

This version is designed to work without bearings for maximum simplicity. However, if you want an even smoother premium experience ask me for the 608ZZ bearings version , and will try to prepare it.

Printing Recommendations

- Recommended material:

- PLA

- PETG

- ABS/ASA

- Suggested settings:

- 0.20 mm layer height

- 3 perimeters

- 25% or more infill

The mounting holes are optional and allow permanent installation using M4 screws if desired. If you print it, I’d love to see your makes, remixes and possible recomendations! 🚀
