HEQ Swan K1 Pro dji Action 2 camera mount

My Swan K1 Pro fixed wing VTOL drone came with a mount for the dji Action 2 camera.

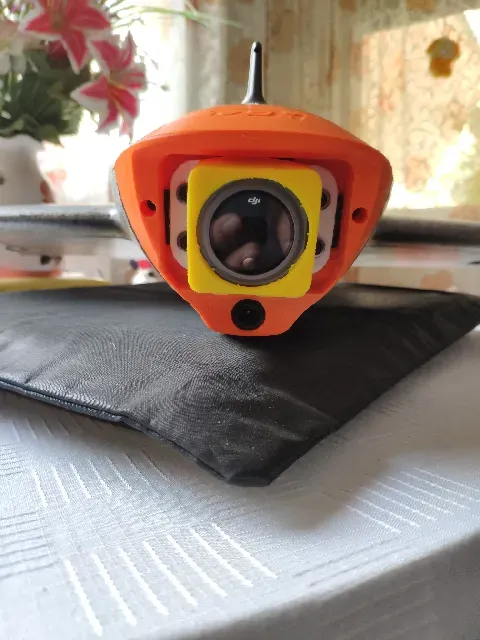

After flying, I discovered that the mount does not hold the camera securely when the aircraft is in wing mode and this causes vibrations (jello) to appear on video. So, I designed this mount instead that helps eliminate jello while keeping the camera safe.

The design should be printed using TPU material and your printer should be dimensionally accurate as the tolerances are high.

Printing advice:

- top lid with at least 30% infill and at least 3 perimeters at 0.2mm - base with at least 25% infill for the lower mount and 3 perimeters and at least 40% infill for the sidewalls, at 0.2mm. You can use the provided .3mf files with PrusaSlicer 2.4.1 as they have the correct printing parameters, you only need to select your printer and slice the models.
