Xiegu G90 Clip-On High-Angle Stand System

Update July 2026

I have updated the rear stand so that now instead of resting at the back edge of the radio with the radio's feet keeping it in place it has holes in it so that it can go directly over top of the feet. The height and angle should remain more or less the same, so there is no need to print another front stand to go with it.

The reason for this change is that I found that while the radio would sit securely, the rear legs would easily slide off if I picked the radio up, or even then adjusting wires in the back. This change solves that problem.

Also after using this for a few months, I noticed one of the arms was cracking at the corner.

I suggest printing this with 3 perimeters to give it a bit of extra strength.

Original

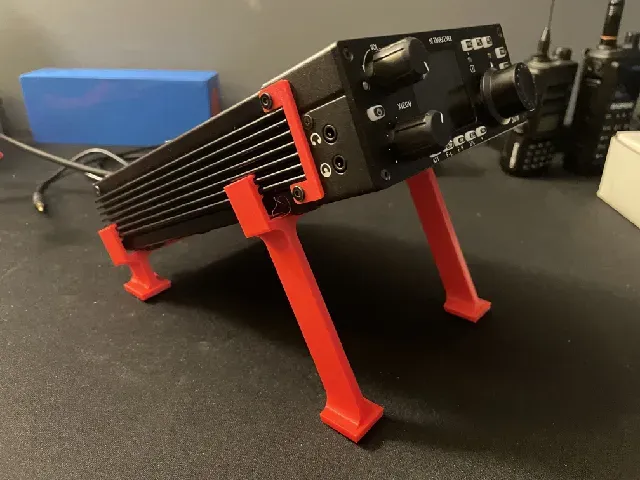

This set of stands elevates your G90 to a more comfortable viewing angle. They can be installed/removed quickly and easily without the use of any kind of tools or fasteners.

The rear legs are necessary to ensure that the radio is not resting on the coax cable.

They should be printed with the angled feet overhanging the print bed. I should have designed them to print the other way but by the time I noticed it, changing it would have been a lot of rework considering the overhang should work fine with no supports on most printers (it printed find on my old Ender3, for example).

I tried to arrange it correctly in the .stl files but in double check before printing because the reverse side is not flat and will not print correctly.
