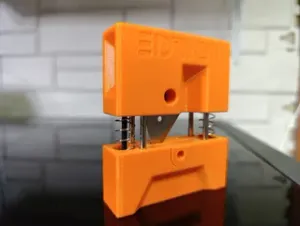

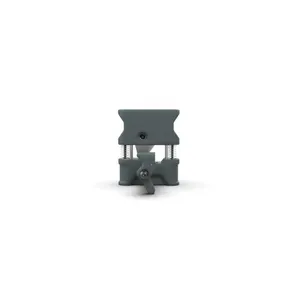

Handheld Guillotine V2.0

The Guillotine V2.0 is a compact manual cutting tool designed for makers, 3D printing enthusiasts, electronics hobbyists, model builders, and craft professionals who need clean, accurate, and repeatable cuts.

Originally developed for cutting PTFE tubes, this tool is also highly effective for trimming heat-shrink tubing, wires, plastic rods, drinking straws, bamboo skewers, and various crafting materials. Its precision-guided blade mechanism ensures straight, clean cuts while significantly speeding up repetitive work.

Whether you're preparing Bowden tubes for a 3D printer, cutting heat-shrink for wiring projects, or processing small craft materials, the Guillotine V2.0 helps achieve professional results with minimal effort.

Features

- Clean and accurate cuts

- Designed specifically for PTFE tube preparation

- Compatible with materials up to 8 mm diameter

- Adjustable length stop for repeatable cuts up to 50 mm

- Uses a standard 19 mm trapezoidal utility blade

- Spring-loaded mechanism for smooth operation

- Interchangeable diameter inserts included

- Compact and easy-to-print design

- Ideal for workshops, makerspaces, electronics benches, and hobby use

Suitable For

The Guillotine V2.0 can be used for cutting:

- PTFE tubes

- Plastic rods

- Heat-shrink tubing

- Electrical wires

- Drinking straws

- Bamboo skewers

- Wooden craft sticks

- Similar soft and semi-rigid materials

Printing Requirements

⚠ Important: This model was designed and optimized for printing with a 0.25 mm nozzle .

For best results:

- Use a 0.25 mm nozzle

- Print with adequate wall count and infill for strength

- PETG, ASA, ABS, or other durable materials are recommended

- Ensure dimensional accuracy for smooth assembly

Included Components

- Guillotine body

- Blade holder assembly

- Adjustable length stop

- Set of interchangeable diameter inserts

- Assembly-ready printable parts

Required Hardware

The following non-printed components are required:

Pins

- 4 × Pin Ø3 × 50 mm
