Parametric Apothecary Cabinet / Labelled Spice Rack

A fully parametric wall-mountable apothecary cabinet / labelled storage rack. Configure the grid (1×1 to 6×6), cubby dimensions, decorative pattern, and per-drawer label text — all via OpenSCAD Customizer or by editing the .scad file directly. Comes with a ready-to-print 2×3 ENGLISH-labelled spice rack:

Salt, Pepper, Sugar, Cinnamon, Rosemary, Curry.

WHAT'S IN THIS LISTING (English spice rack, pre-rendered):

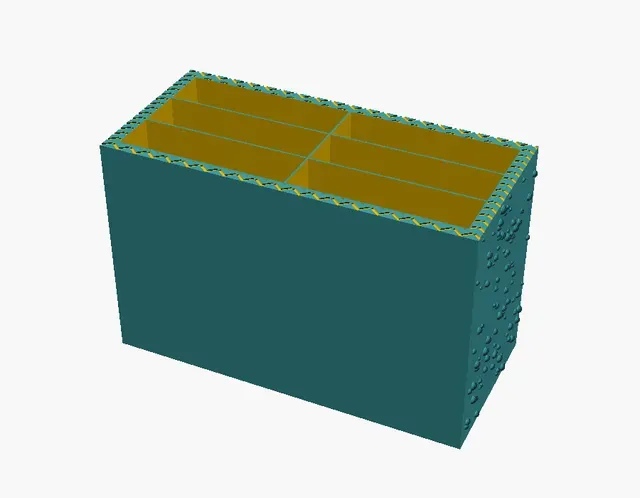

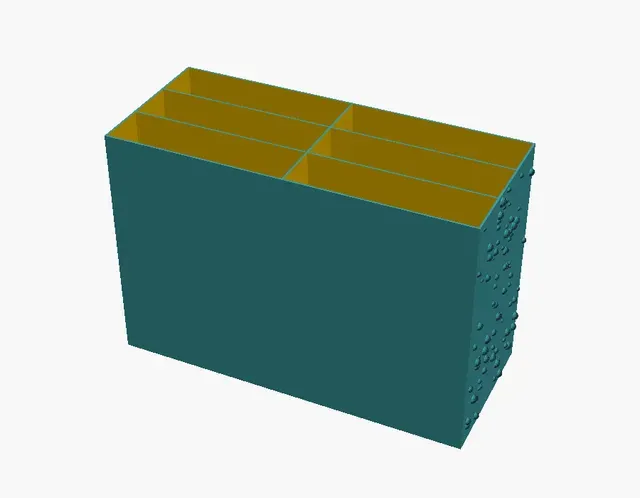

- shelf.stl — the cabinet body (2 cols × 3 rows config)

- case_<spice>.stl × 6 — one drop-in drawer per spice

- letters_<spice>.stl × 6 — raised text overlay (for AMS multi-color)

- cubby_shelf.scad — the parametric source (Customizer-ready)

Printing:

- shelf → back panel on the bed, cubbies open upward

- cases → floor on the bed, walls go up, open top

- letters→ pre-positioned to drop into each case's engraved face void

- PLA or PETG, no supports needed anywhere

- Single-colour: print just the case files (label is engraved in)

- AMS multi-colour: print case + matching letters as a 2-colour set

PARAMETRISATION (every parameter is in the .scad file, all Customizer-tagged):

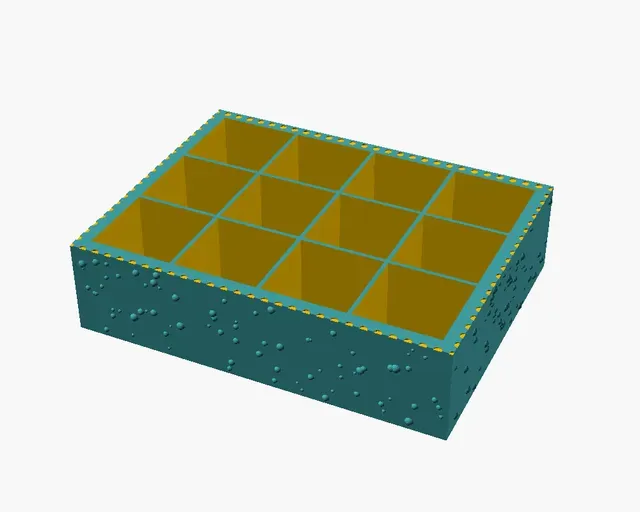

GRID n_rows 1–6 number of rows (vertical stack) n_cols 1–6 number of columns (horizontal repeat)

CUBBY DIMENSIONS (mm) cubby_w 25–120 internal width of each cubby cubby_h 25–120 internal height of each cubby cubby_d 20–120 internal depth (front-to-back)

SHELF CONSTRUCTION wall_t 1.6–5.0 divider walls between cubbies outer_wall_t 0.8–5.0 outer perimeter walls (independently tunable — usually thinner than dividers since the front frame already adds structural width) frame_w 0–20 front decorative frame width (0 = no frame) back_t 1.2–6.0 back panel thickness mount_holes bool keyhole slots in the back panel open_back bool no back panel (free-standing display) keyhole_head_d 5–14 screw-head clearance Ø keyhole_shank_d 3–8 screw-shank Ø keyhole_slot_h 4–14 keyhole slot height (head-to-tip)

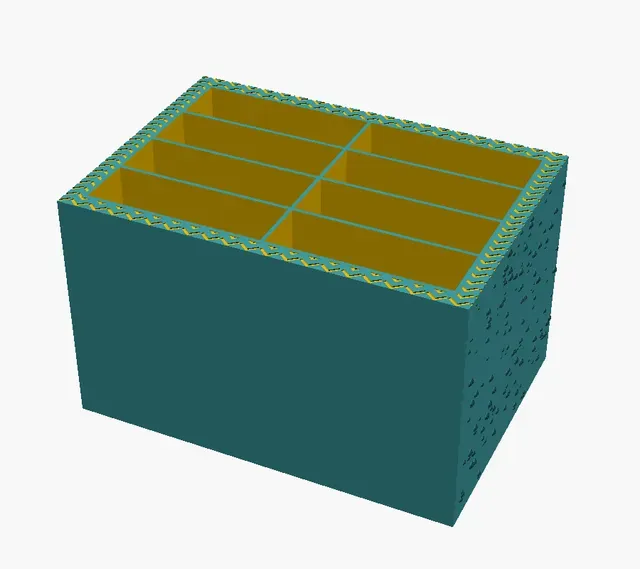

FRONT-FRAME PATTERN (engraved) pattern_style none / zigzag / studs / diamonds / scallops / greek_key pattern_pitch 4–24 repeat spacing (smaller = busier) pattern_depth 0–2 mm engraving depth

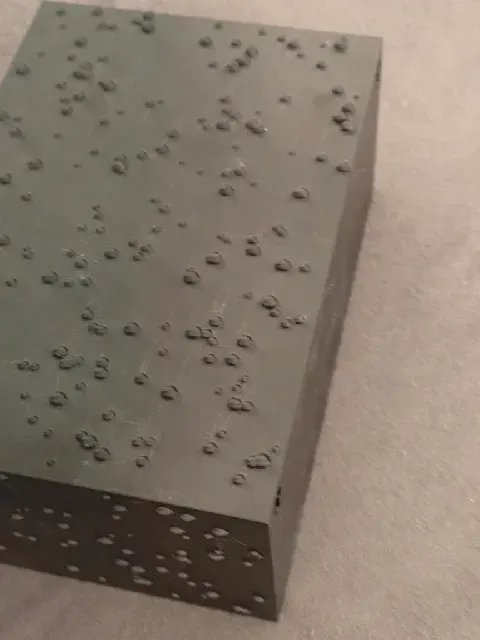

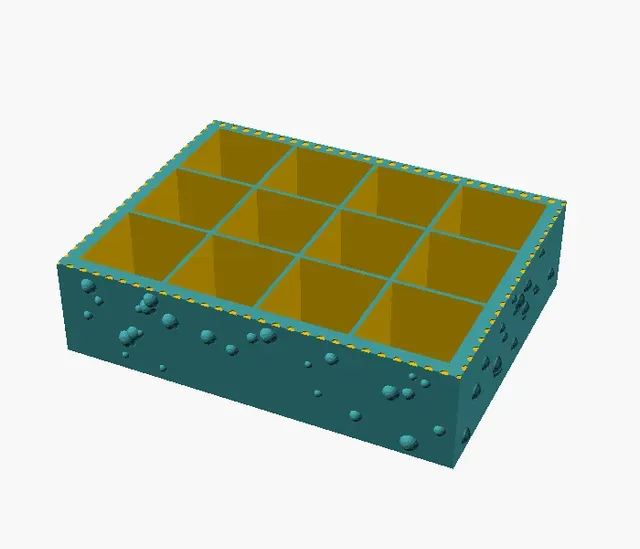

BODY PATTERN (raised pebbles) body_pattern_style none / pebbles / pebbles_dense / pebbles_sparse body_pattern_depth raised bump height

DRAWER LABEL label_text string raised text per case (Czech diacritics OK) label_font string any OpenSCAD-installed font label_depth 0.4–1.2 raised height of letters

OTHER USES (just change parameters):

- Tea boxes / kitchen ingredients — change label_text per drawer

- Workshop fasteners (screws, washers, drill bits) — bigger grid, smaller cubbies

- Craft / hobby — beads, paints, threads

- Bathroom — cosmetics, hair ties

- Office — receipts, cards, stamps

License

Creative Commons — Attribution. Personal + commercial use both OK, attribution appreciated.
