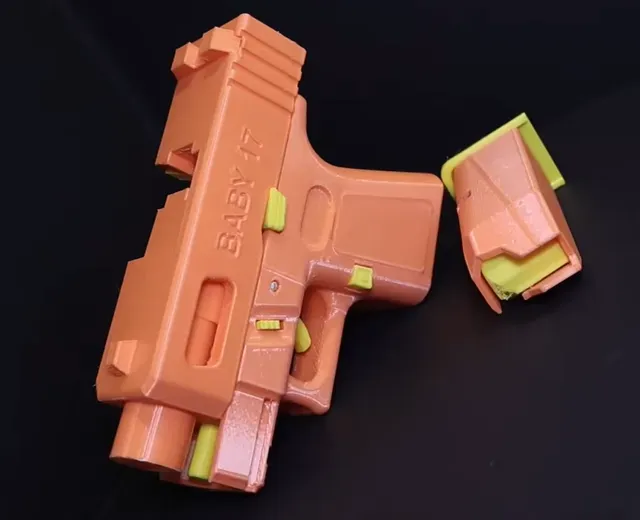

BABY G17

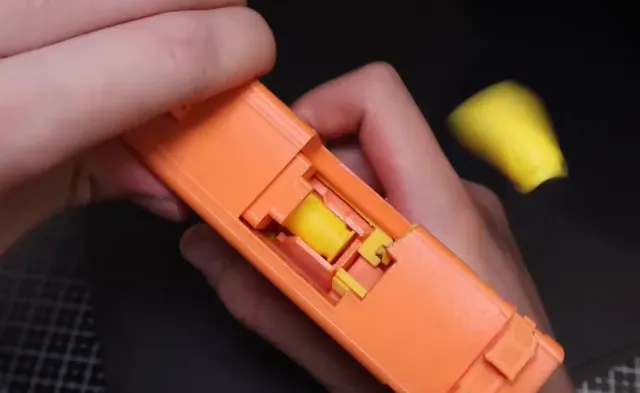

This is just a fidget toy, so no blowback, no shooting, just slide moving and shell ejecting dummy rounds

(In advance, sorry for the incomplete assembly guide, which will come soon but im pretty busy with study rn)

The springs u need for the mag are 80mm length, and 12mm in diameter with wire diameter at 0.5-0.7mm

The slide spring is 50mm length, 10mm diameter, and 0.5-0.7mm wire diameter

The extractor spring can be from a pen which is around 5mm spring diameter and length of 20mm, and wire diameter at 0.5mm

Theres also a piece of rectangular plastic to be cut and folded in half which you screw into the hole of the frame next to the trigger port which acts as a spring for the disassembly lever

Sorry for the unfinished guide, I hope this does for now, as im pretty busy with work rn

This model was made with the help of an ai tool (Hitem3D) to get the overall reference shape of the g17 in a chibi form

and if u wanna try out the tool for yourself:

https://www.hitem3d.ai/?utm_source=koc_kol_YT&utm_medium=sign_up&utm_campaign=IDEASY4P

assembly tutorial coming soon
