5/8x24 Threading & Alignment Guide Rod (.357 / 9mm) - Parametric

🌟 Ensure perfect suppressor alignment and flawless barrel threading with this precision guide rod!

When threading a barrel or mounting a suppressor (suppressor/silencer), perfect concentricity is absolutely critical. Even a fraction of a millimeter of misalignment can lead to catastrophic baffle strikes and ruin your suppressor.

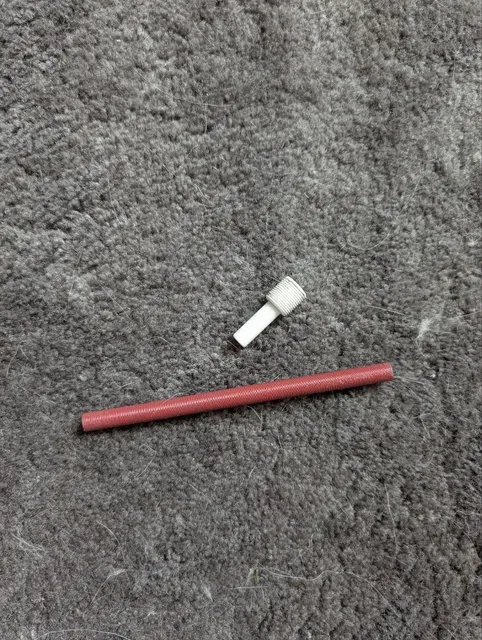

This tool is designed to act as a precision alignment and threading guide for 5/8x24 threads on .357 / 9mm calibers. It ensures your threading tool or suppressor sits perfectly concentric to the bore.

Standard bore rod diameter is set for .357 , but it is fully customizable!

✨ Key Features:

- Perfect Alignment: Eliminates guesswork and prevents devastating baffle strikes by ensuring absolute concentricity.

- Dual-Purpose Tool: Excellent as both a cutting guide during the live threading process and a verification rod for final suppressor mounting.

- Fully Parametric & Customizable: The upload includes the original FreeCAD source file (.FCStd) . If you need a different bore diameter (e.g., .223, .308, .45), you can easily open the file and adjust the dimensions to fit your specific barrel!

📦 Included Files:

- .STL file – Ready to print for standard .357 bores with 5/8x24 or other thread projects.

- .FCStd file – Original FreeCAD 3D project file for easy customization and remixing.

🖨 Print Settings for Maximum Precision: To ensure this guide functions as a true precision tool, follow these settings:

- Material: PLA+ or PETG (PLA is preferred here for its rigidity, preventing any flex during alignment checks).

- Layer Height: 0.2 mm or 0.16 mm (Lower layer height ensures smoother surfaces and better concentricity).

- Infill: 50% to 100% (Straight lines or Gyroid) for maximum stiffness.

- Wall/Perimeters: 4 to 6 perimeters (Crucial to make the rod completely rigid).

- Orientation: Print it vertically with a generous Brim (8-10mm) to ensure it doesn't wobble or detaching from the bed during printing.

⚠ Disclaimer: This is a 3D-printed tool meant for alignment checks and hand-tool guiding. Always verify your prints with calipers before using them on high-precision tasks.

💡 If you modify this file for another caliber, please post a Remix! And if it saved your suppressor, don't forget to upload a Make and hit the Like button! ❤

About the Project

Part of the Taka Tech Lab series—bridging the gap between DIY maker culture and professional sports shooting equipment
