Side Lace Lock – No‑Tie Shoelace Holder for the Last Eyelet

A lightweight, ultra‑compact and efficient system designed to lock your shoelaces without tying a knot . These side lace locks attach directly to the last eyelet of your shoe (one on each side) and guide the lace through a multi‑stage path that increases friction and keeps everything securely in place.

Perfect for running shoes, sneakers, work shoes, or anyone who wants a clean, knot‑free look.

🔧 How It Works

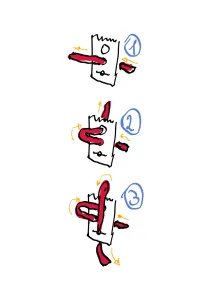

The lace follows a three‑step guided path:

- Central Hole The lace enters the main 4.1 mm hole, which keeps the lock aligned with the shoe’s eyelet.

- Upper Hole + Grip Surface The lace exits the central hole, re‑enters the upper hole, and passes over the textured grip area. This increases friction and prevents slipping. The lace passing over the lock also prevents the part from touching your ankle.

- Lower Slot Locking System The lace drops into the lower slot, where the narrow geometry locks it under tension.

The result is a stable, adjustable, knot‑free closure.

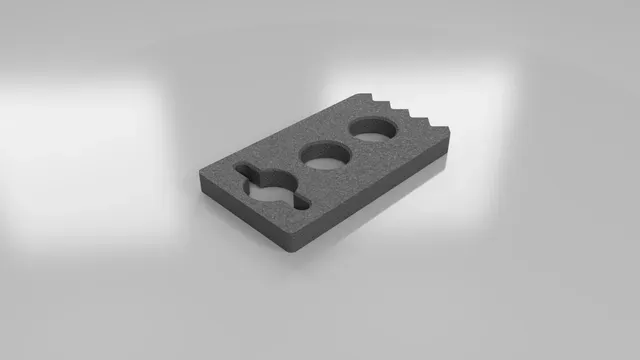

📐 Dimensions

- 20 × 11 × 1.8 mm

- Central & upper holes: 4.1 mm (fits almost all lace types, flat or round)

- Lower slot: 3.2 mm

- Thin, lightweight profile

- Textured top surface for extra grip

⚙ Print Settings

- Print time : under 10–15 minutes for two pieces (depends on printer)

- Supports : not required

- Recommended materials : PLA, PETG, TPU

- Layer height : 0.2 mm

- Infill : 20–30% (0% also works due to the thin geometry)

⭐ Features

- No‑knot lace locking

- Fits almost all lace types (4.1 mm holes)

- Ultra‑light and discreet

- No ankle contact thanks to the upper‑path design

- Prints extremely fast

- No supports needed

- Ideal for sports, running, daily use
