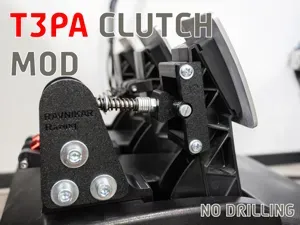

T3PA Clutch MOD

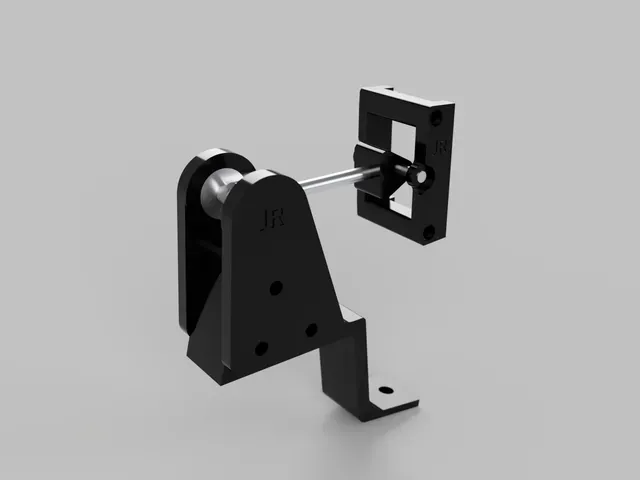

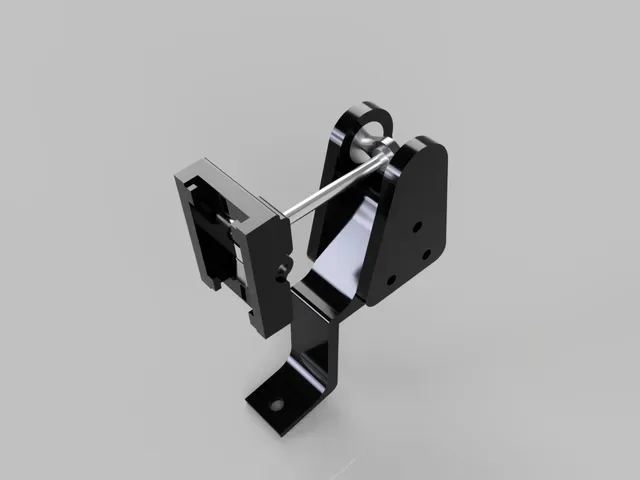

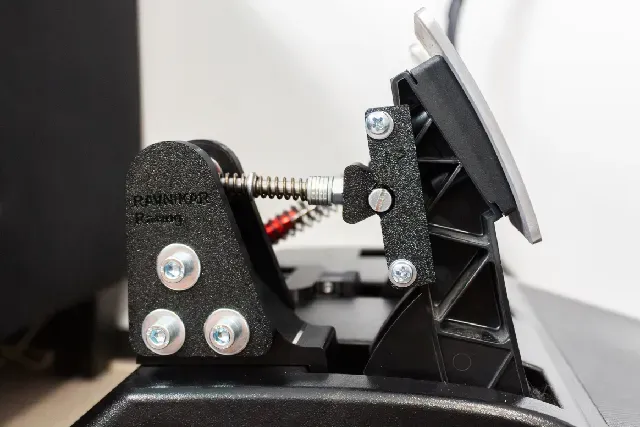

I made this model because I wanted the clutch, on T3PA, to feel similar to real life. I based this concept on this photo . It is a compact design made for durability and stiffness. There also isn't any drilling needed to fix the mod onto the base, as I didn't want to "destroy" it. Basic principle: the point when spring is the most compressed isn't at the end but somewhere around 3/4.

I also tested it with BeamNG drive and got the clutch settings like this:

If you like my design please add a make, a like and I'm also open to any suggestions on how to improve it.

Parts needed:

- M6x20 (or more, the screw of the pedals base)

- M6 flat nut (fi18mm)

- 2x M4x25 (round head, prefer. Allen)

- 2x M4 nut

- M5x50 (round head, prefer. Allen)

- M5 nut

- M6 nylon insert nut

- M6x70 (partially threaded at end) (countersink head, if longer than 75mm doesn't matter)

- compression spring (max length 55mm, fi10mm) *you can use any spring that works for you

- 2x 608 bearing

- 3x M6x55*

- 3x M6 nut*

- 8x M6 washer*

parts are also in pdf file.

I recommend printing with PETG.
