Gridfinity collet holder CNC

Gridfinity holder for AMB-/KRESS collet with attached clamp nut.

Designed for my Mafell 1000FM, which uses the Kress collet.

Don’t know if it will fit for ER16 collets, but dimensions are given, holes are 24mm and 13mm in diameter and they are 9mm and 8 mm deep, see cross section view:

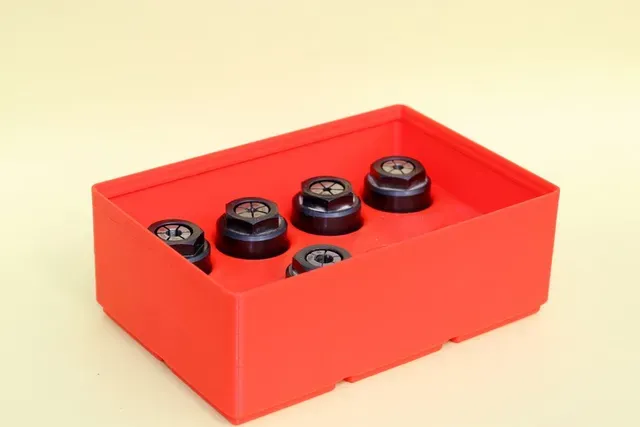

3x2x1_Collet-box: mounting for 8 collets, for easy selection

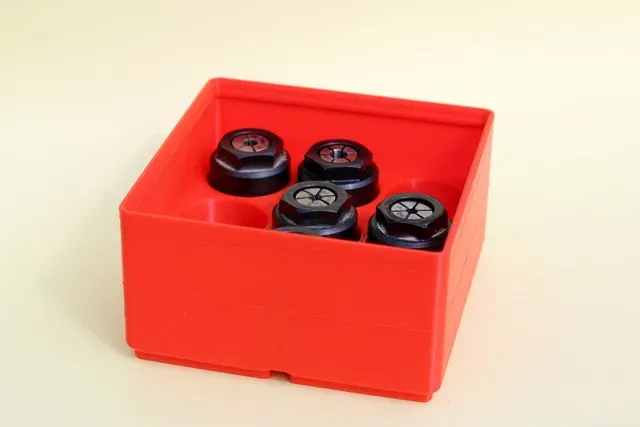

2x2x1_Collet-box: mounting for 9 collets, a little bit cramped

my Gridfinity modells

storage boxes (1x1 to 3x3) https://www.printables.com/de/model/175692-gridfinity-storage-boxes

storage bigger boxes (4x1 to 5x5) https://www.printables.com/de/model/176917-gridfinity-storage-big-boxes

storage boxes expandable, lenght to infinity… https://www.printables.com/de/model/437449-gridfinity-expandable-strorage-boxes

collet holder for CNC https://www.printables.com/de/model/175705-gridfinity-collet-holder-cnc

holder for superglue bottles https://www.printables.com/de/model/177516-gridfinity-box-for-superglue-bottles

holder for torque wrench handle https://www.printables.com/de/model/425640-gridfinity-bin-for-torque-wrench-handle

Credit goes to Zack Freedman for his inovative Gridfinity concept
