CreatorClip – Adjustable Monitor/Webcam Mount

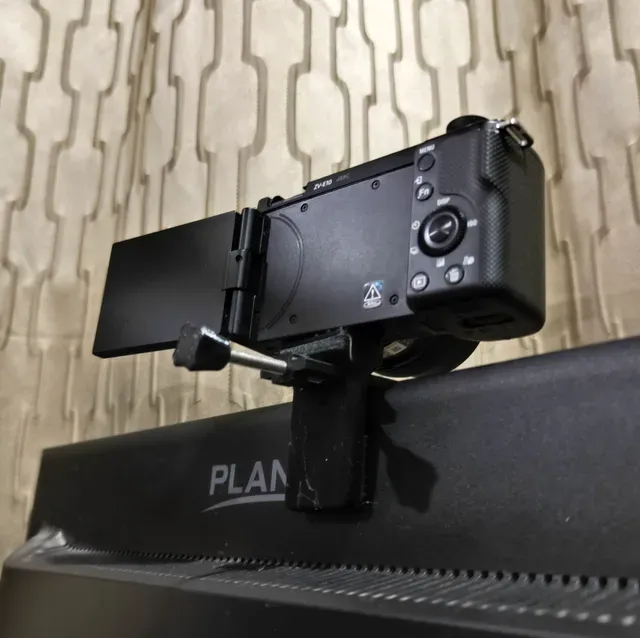

The CreatorClip is a fully 3D printable adjustable monitor/webcam mount designed for webcams, mirrorless cameras, action cameras, lights, and other accessories using a standard 1/4-20 mounting system.

The adjustable clamp design allows the mount to securely attach to a wide variety of modern monitors while remaining compact, lightweight, and easy to use. The angled support structure helps provide additional rigidity while maintaining a clean and minimal design.

This project was designed with printability in mind and can be printed without supports on most FDM printers. Depending on printer tuning and bridging performance, some users may prefer enabling minimal supports under select overhangs.

Assembly / Demo Video:

Features:

Adjustable monitor clamp Standard 1/4-20 camera mounting Support-free printable design Compact and lightweight Large textured grip surfaces Creator/workstation focused design Compatible with webcams, mirrorless cameras, lights, and other accessories

Adjustment Notes: One interesting feature of the adjustable clamp design is that the camera angle can be slightly adjusted by changing clamp tension. Loosening the clamp slightly allows the mount to lean back a bit for a higher camera angle, while tightening the clamp creates more of a downward-facing angle. Just do not overtighten the clamp 😉

Materials Used:

PLA filament recommended for the main structural parts - https://amzn.to/43sgJly eSUN 83A TPE used for the contact pads shown in the photos - https://www.esun3d.com/elastic-tpe-83a-product - https://amzn.to/4fvC1WQ Standard 1" 1/4-20 stud - https://amzn.to/3PzLF08 Standard M5 bolt used for the clamp adjustment mechanism (Cheaper getting them in action camera knobs from amazon, then just popping them out as needed) - https://amzn.to/4o2jkwp CA glue used to secure the 1/4-20 camera stud in my build - https://amzn.to/439c6Nv

Recommended Print Settings:

PLA Parts:

0.2mm layer height 2 walls 30% infill Auto brim: On

TPE Parts:

0.2mm layer height 2 walls 100% infill

The included photos show the recommended print orientation. Hardware Notes:

1 inch 1/4-20 threaded rod/all-thread should also work well for the camera mount stud The M5 bolt size is commonly found in many action camera knobs and mounting accessories The 1/4-20 stud can likely be left loose if you want it to remain rotatable instead of gluing it in place

Included Parts:

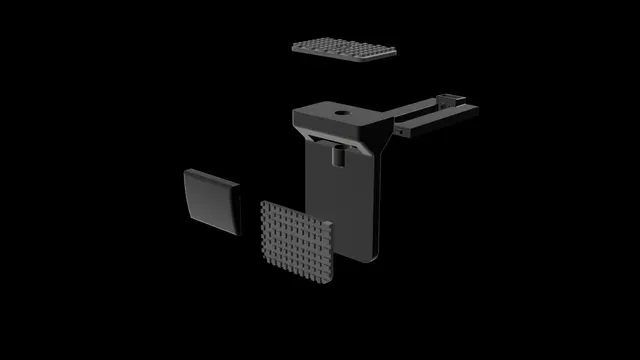

Main Support Frame Sliding Clamp Rail Front Monitor Support Rear Monitor Pad Camera Mount Pad Adjustment Bolt Knob
