BTT Mini12864 Display mount for Voron V0.2 with front case
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC0
- Общественное достояние: можно печатать, изменять и продавать без указания автора.
- Форматы
- 3MFF3DSTEP
- 0 Лайки
- 7 Загрузки
- 0 Напечатали
- 0 Комментарии
- 60 Просмотры
Описание

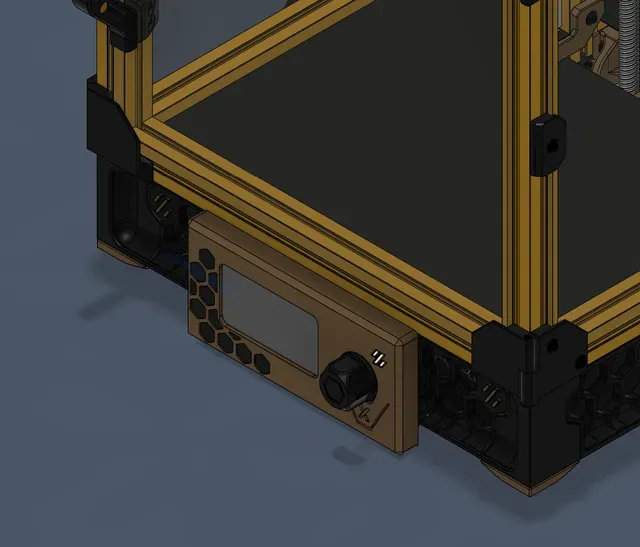

Mini12864 mounting brackets for the Voron V0.2, included are altered skirts for the mounts and display. Uploaded are the step and f3d files as well.
The following hardware is required: 4x M2x10 Self Tapping screws, and reusing the 2x M3x6 cap screws and hexnuts from the headless insert
Please feel free to message me about my config and wiring, I was able to connect without the usb adapter. More information about the display, usb adapter, and wiring can be found at the following:
https://github.com/VoronDesign/Voron-Hardware/blob/master/STM32_Mini12864/README.md
https://github.com/bigtreetech/MINI-12864/tree/master
https://docs.vorondesign.com/build/electrical/mini12864_klipper_guide.html
I don't remember where the original idea or inspiration came from because my brain isn't working, sorry
