Prusa XL reduced force magnetic 6mm side filament sensor

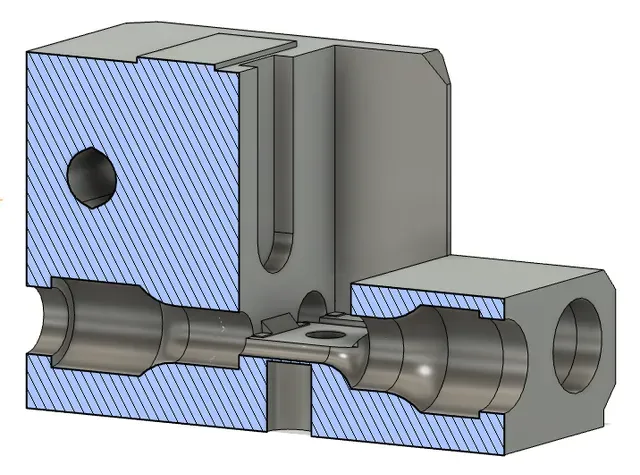

This mod replaces the side filament sensor on the Prusa XL with 6mm outlet collets. And since we're tearing everything apart in the spirit of reducing load force, I added magnet slots so that we can remove the springs. This is based on the newer R3 version of the side filament sensor,, and elongates the PTFE paths so it can more reliably hold the 6mm PTFE tube.

You'll need the following:

- 6 6mm collets

- 6 4mm collects

- 6 4x2mm round magnets

- 4mm ID x 6mm ID PTFE tube

This is designed to work in conjunction with Repkord's 6mm PTFE tube mod for the XL , so I suggest only print this out once you've gotten that mod in place.

From there, take the side filament sensors off, and disassemble them.

Then, follow the instructions on the original mod to remove the springs, match the magnets, and re-assemble the filament assembly.

Special Note:

- The right side and left side are the same part.

- This model does not contain numbers. If you want numbers, use the slicer to add a text modifier and place the numbers. I suggest 10pt "impact" font
