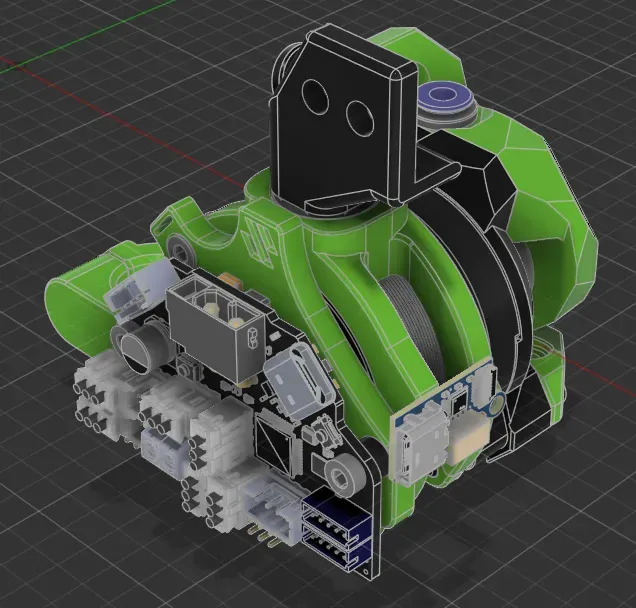

Voron 2.4 Horizontal Cable Chain Mount for Wrist Watch G2 Extruder and BD Pressure board mount

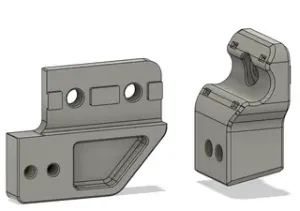

I really liked the how the original used an F695 bearing a pivot for a drag chain mount, but the it was for an orbiter/stealthburner. I redesigned it so that it would work with a Wristwatch G2 extruder/A4T toolhead, and I made everything as compact as I could. I also modified the 2.4 cable chain gantry mount to match the height of the new toolhead assembly. I also mirrored the chain mount part on the toolhead, and modified for a two hole chain

Components

Qty

F695 ZZ or RS

1

Heatinsert M3

4

M5x12 BHCS

1

M5x10 BHCS

2

M5 nut

1

M5 2020 Drop in Tnut

2

M5 Washer

1

10mm Stand-off Both ends Threaded

2

M3 nut

3

M2x10 BHCS

1

M2x6 BHSC or SHCS

1

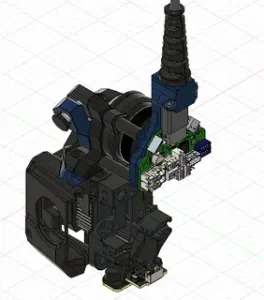

Designed to be used with My remix of this H36 mount:
