QR or Threaded Adapter - Tripod to Picatinny Rail

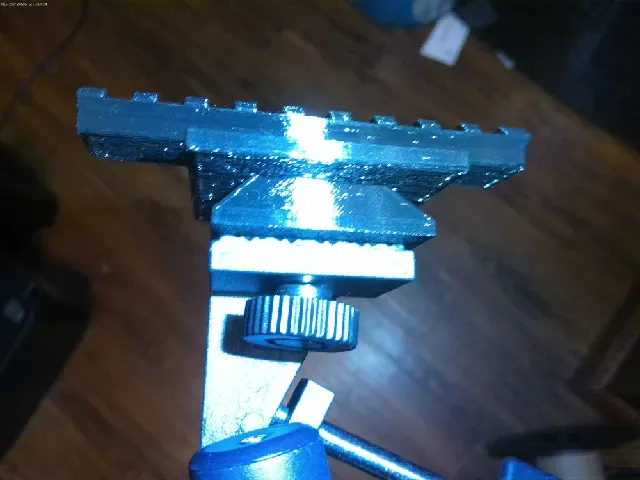

I found only one Picatinny rail to tripod adapter so I could mount my scope to my tripod. I made it and the base was too large to fit my Quick Release (QR) mount. I also have a small tripod for a spotting scope that has a screw instead of the QR mount. This is a remix that fixes both of those issues. I took the base measurements from a universal QR Mount I got from Amazon. That mount has worked on several QR tripods of different manufacture.

I filled the original model's base in and added a 10mm deep hole that is sized for the internationally accepted 1/4-20 screw. If you choose to use the screw-in tripod, you will have to cut the threads yourself. Use the screw from your tripod or a 1/4-20 screw, go slow, and back the screw out occasionally while you are threading the hole. This will ensure a tight fit to your tripod without stripping out 3D printed threads. You may try heating the screw to make it easier though I did not. If you have a 1/4-20 tap, you can also use that.

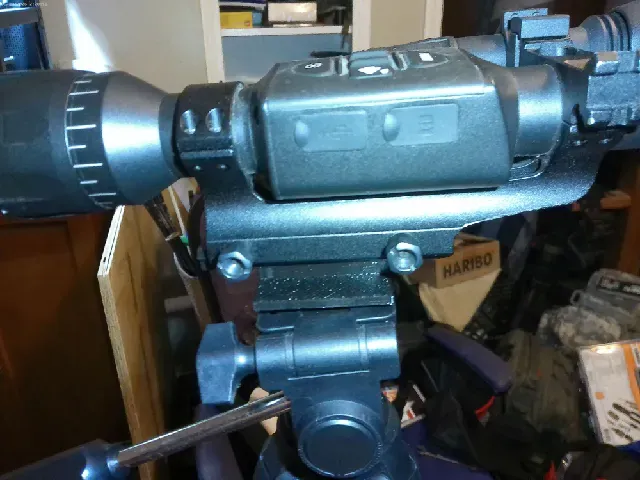

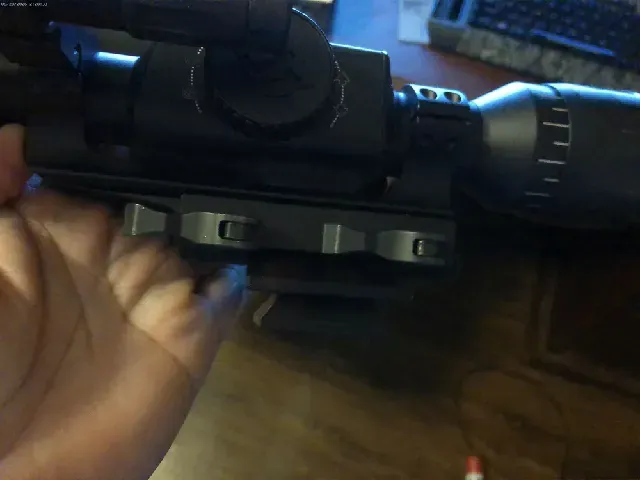

I printed this in PETG. It took about two hours and used less than 30 grams of filament, including supports. The settings I used for the supports allowed them to peel off in almost two parts. With only two wall loops and 10% infill, the mount was solid enough to hold my ATN X-Sight 4K Pro 5-20x with the illuminator (over 2.2 lbs/0.99 kg).

Flash Studio support settings - Tree: Auto Slim, Threshold angle: 45, Threshold Overlap: 50%, First Layer Density: 2mm. On build plate only, Support critical regions only, Ignore small overhangs all activated. Top and bottom Z distances 0.28mm. Base pattern spacing 2.5mm. Top and bottom interface layers 2. Default interface pattern. Top interface spacing 0.25mm. Bottom interface spacing 0.5mm Support/object XY distance 0.8mm. Support/object first layer gap 0.2mm. Max bridge length 10mm. Independent support layer height active. Tree support branch distance and diameter 5mm. Branch angle 45 degrees. Auto brim width active. Tree support brim width 3.
