Adjustable Spool Holder

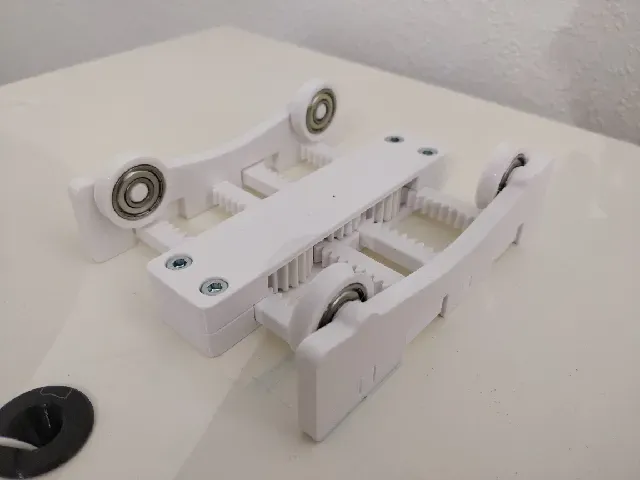

This is a fully adjustable spool holder designed to be screwed down onto your enclosure. It can take spools from 40mm to 180mm width (almost any spool you can find on the market!). A gear system links the left and right side together, if you move one side the other moves as well. I recommend you use some kind of filament guide like this one: https://www.prusaprinters.org/prints/58073 for the popular IKEA Lack enclosure.

Printed parts:

- 1x Bottom Plate.stl - 1x Top Plate.stl - 2x Side Plate.stl - 4x Rack.stl - 4x Roller.stl - 2x Gear thick.stl - 1x Gear thin.stl Hardware:

- 9x 608 bearing (608ZZ or open; Sealed bearings might not work) - 4x M5x16 socket head screws + nuts - 2x 4mm countersunk wood screw For Remixers: The STEP file: https://github.com/testudor/adjustable-spool-holder

Changelog:

- 22.01.2020: Made recess holes for M5x16 a little wider and less deep Print instructions:

Use 40% infill for racks, print everything else in 15%. Depending on your print's dimensional tolerances you might have to glue the racks into the side plate or have to sand some pieces until they fit. If you own a Prusa MK3/MK3S you should not need any sanding/glue at all.
