PCIe Mining Bracket

PCIe Mining Bracket

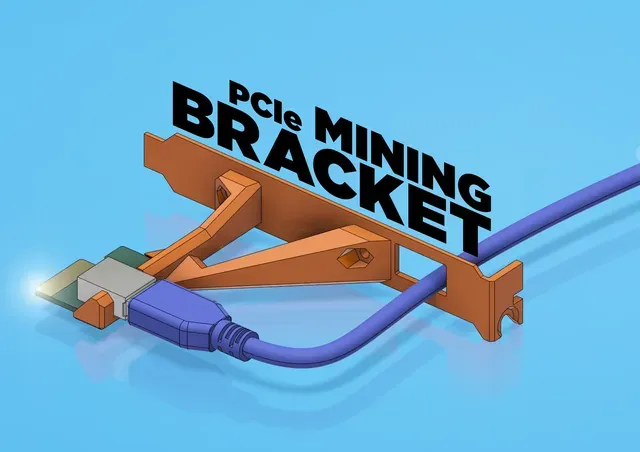

Is your mining rig keeping you up at night, dreading that those unsupported PCIe adapters are going to wriggle lose destroying your rig and precious hopes and dreams? Rest easy with the PCIe Mining Bracket. This puppy is designed to lock those adapters in place where they belong.

The adapter mimics the exact dimensions of a single slot for a conventional computer case.

HARDWARE: (either) • 2x M3*8 or M3*10 screws • 1x M3*6 screw • 3x M3 nuts • PCIe Mining Adapter (Like this)

PRINT INSTRUCTIONS

Print the bracket as two separate parts, the bracket and the back plate. Print does not require any supports.

Assemble bracket to the back plate using two M3 nuts and two M3*8 or M3*10 screw.

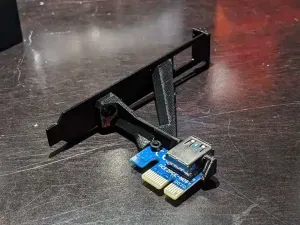

Slide adapter into place, secure in place using the M3*6 screw and an M3 nut.

Install in your pc, you can now run the USB cable through the back opening and continue your career as a respectable miner of the crypto.

PRINT SETTINGS: Filament: PETG (Heat might warp PLA) Nozzle Size: 0.4mm Print Height: 0.2-0.25mm Infill: 10-20%

If you need some cable management for your project check out my family of cable clips

Available HERE

Note: never use the “SATA to 6-Pin adapter" provided with this and similar PCIe riser kits. Always use the graphics card dedicated 6-Pin from an adequate power supply only.
