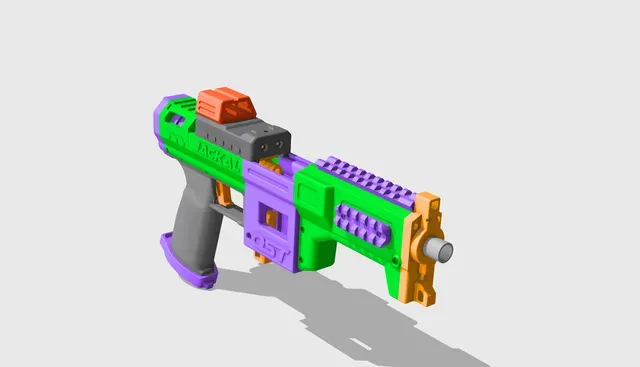

OST-JACKAL

A top prime spring powered blaster with internal mag or talon mag magwell.

modular body

Same hardware as the beta version just updated parts and now with a Lynx grip from Orion blasters.

More information and build guide coming soon.

Step files included

Let me know if I left anything out!

OUTSIDETOY

Jackal hardware

4 inch k25 and k26 springs will work.

Aswell as upgrade retaliator/spamf springs

X2-m3 30 screws

X2-m3 25 screws

X4-m3 16 screws

X6-m3 10 screws

X2-2.5 x 30 pins for trigger and catch

Talon mag spring. For the internal mag. I’ve found that you won’t need to cut the mag spring with the big mag base.

Small spring for mag release.

1.5 - 4 inch polycarbonate plunger tube

X2-dash 123 O-rings

10mm x 2mm O-ring for pusher tip

18mm x 2mm O-ring for the barrel vice.

X4 - m3 8 screws

X3 - m3 12 screws

X2 - m3 35 screws

Small size spring for the catch.

13mm ID x 16mm OD aluminum barrel 6 inches or longer.

Let me know if it seems any hardware is missing.

Updates:

7-20-26 - I’ve updated the barrel vice as it was too shallow to hold an oring.

8-28-26 - I’ve added a drum spring version of the internal mag. The base and follower will need to go with it.

9-7-26 I’ve added 2 new back ends that allow bigger springs. I’ve had good results using k25 and k26 springs.
