Parametric Storage Generator

Updates

22/7/2026

- Puzzle Mode added

- Drawer catch option added

CELLIX 2.0

- Puzzle Mode introduction and Instructions Guide added

- Cellix 2.0.1 changed Clearence for Pins minimum to 0mm

23/7/26

- Cellix 2.1 Pin fillet optimised - Drawer Catch option automatically merges back wall extensions

- User Guides updated to 2.0 - new features included and explained

24/7/26 (cellix 2.2)

- Named generated parts after category.

- Added Decorative plugs for the spaces between two sides and between four cells

- Optimised Handles openings

28/7/26(Cellix 2.3)

- Added DIVIDERS option for cells

INTRO

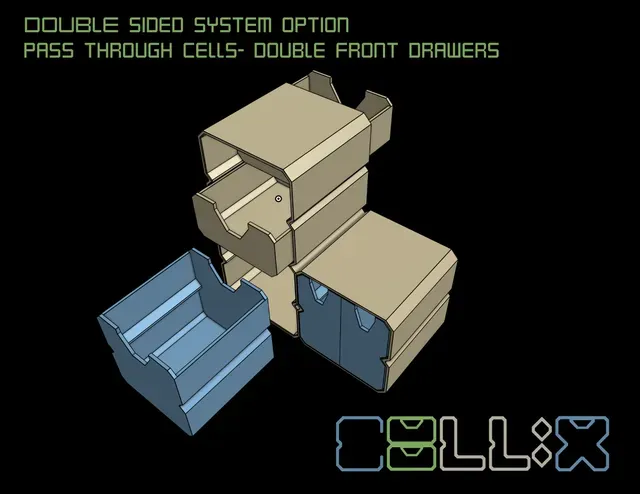

CELLIX is a fully parametric storage system generator running on Onshape. It automatically creates custom storage units and matching 'floating' drawers based on your exact requirements.

Try it, whether you need a compact desktop organizer, a workshop storage cabinet, a miniature drawer unit or just single custom cells that can be print separately or joined later in your slicer.

You dont need to know CAD , You dont need to have an Onshape account , and it is free

- Choose your style

- Configure your storage dimensions.

- Generate the complete storage system or single parts.

- Hide the parts you don't want.

- Export the required STL files.

- Alternatively, export single custom parts and join them in your slicer the way you want.

- Print.

I recommend downloading the User s Guide + the new CELLIX 2.0 PDF as they contain very important information . Below is a short overview of what Cellix can do

Features

Parametric & Calculation Systems

- Dual Calculation Modes (CELLIX Mode): Choose between two distinct math engines to define unit dimensions to fit exact spaces or fixed grid steps.

- Fully Parametric Scaling: Adjust cell width, depth, height, and wall thickness etc

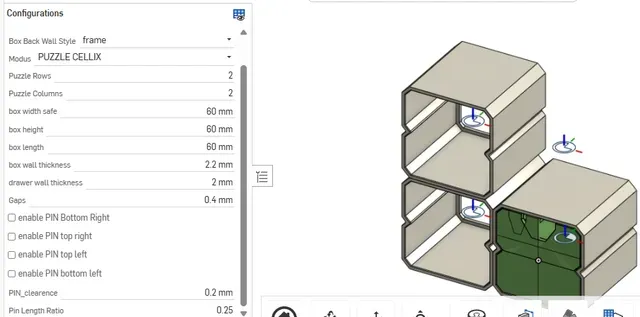

- Customizable Puzzle Pins (CELLIX PUZZLE Mode: Tailor pins placement, and fit tolerances when operating in Puzzle Mode.

- Clearence settings

- Error-Proof Formulas: Built-in dynamic safety logic prevents broken sketches, filleting errors, or failed geometry.

Modular Modes & Layouts

- CELLIX Standard Mode: Uniform, stackable grid units for clean desktop or drawer organization.

- Puzzle Mode: side-by-side locking system Easy assembly

- Puzzle Mode: Mixed-Height Asymmetrical Snap: Combine units of varying depths (e.g., 60 mm next to 30 mm) for stepped, tiered, or L-shaped layouts.

Shell & Drawer Customization
