Recreator3D MK6 Base Plate for Daokai 24v or 12v Power Supply PSU (Cheap Amazon PSU)

This model is a remix of the original base plate from JRT3D 's " The Recreator 3D : MK6 "

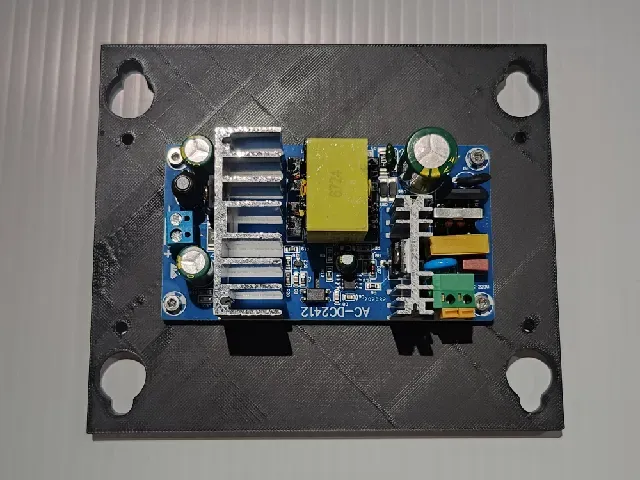

I have modified the original base plate to have compatible mounting points for a cheap 24v power supply I found on amazon , the “ Daokai 24V Switching Power Supply Board 4A to 6A 100W High Power AC-DCPower Module ”.

This base plate is also compatible with this 12v version of the same PSU , or any other PSU that has the same dimensions!

UPDATE ! (August 2026)

- I have been made aware that sometimes the power supplies I modified this base plate for (linked above) are sold out . The manufacturer seems to update the listings frequently, but if it is unavailable at your time of viewing, other power supplies with nearly identical dimensions and specifications can be found in the recommended items sections above and below the listing. From what I have looked at , if it has roughly the same capacitor and heatsink layout, it will likely be mountable to this base plate .

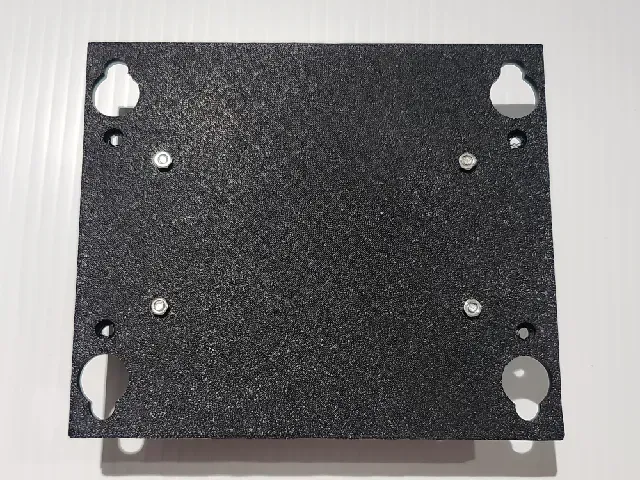

Required Mounting Hardware:

- 4x M3x12mm Screws

- 4x M3 Nuts

I have included all versions of this that I created during my design process, they are as follows.

v3.1 IS RECOMMENDED! (I have personally opted to use my v3.1 Version as I have no desire to use the originally intended PSU and the built-in standoffs make the mounting process very simple!)

- " New Versions" (v2.1 and v3.1)

- These DO NOT have the original PSU mounting holes , featuring only my newly added mounting holes for the Daokai 24v/12v PSU.

- "Older Versions" (v2 and v3)

- These still have the original PSU mounting holes as well and can still be used with the originally intended PSU in case you wish to switch to it later.

Please follow the build guide created by JRT3D on the original Recreator3D MK6 post and use their recommended print settings to have the best possible outcome for your build. Enjoy!
