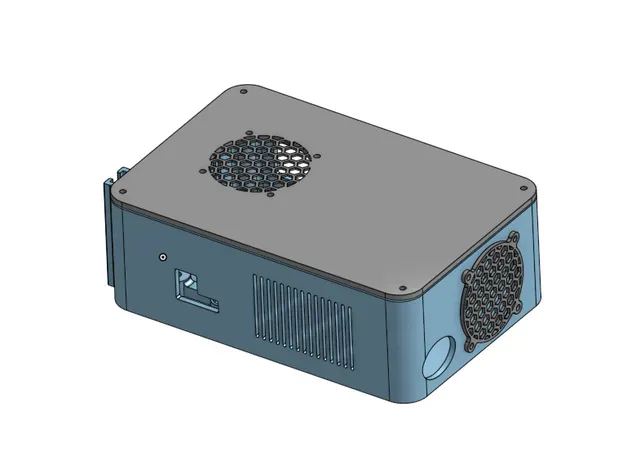

BIGTREETECH Manta M5P case

I took inspiration from @Solid3D_676108 housing, I like the general style but needed to modify things for my needs. Specifically I was using 5010 fans and needed to be able to mount it on the side of the printer using m5 bolts and t-slot nuts. I also wanted to extend my front t-slot to add a display that needed to be farther to the right to miss the bed leveling screw of my printer. Printer mounts to m3 heat set nuts and 5mm m5 risers to align all the inputs.

Hardware needed

- Needed Hardware

- M5 t-slot nut x2

- M5 10mm bolt x2

- M3 6mm bolt x8

- m5 5mm heat set insert x8

- BTT manta m5p

- BTT CB1 or other RPi compatible compute module

- 5010 fans x2

- m3 12mm bolts x8

- m3 nuts x8

I am including the onshape link: https://cad.onshape.com/documents/857ec5b4607469ffa95f3498/w/40d9425434dc046f13445873/e/35faf5b8679cf950f8757360

Modification: the CRtouch and Hotend fan cables were a little short, and I didn't want to spend more time making new ones so i routed them through a hole I drilled on the top, this hole is not in the original file
