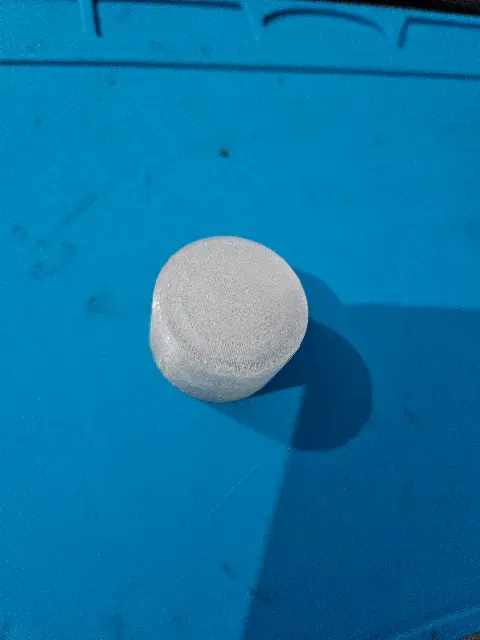

Replacement Water Bottle Cap / Lid (Ridged & Smooth)

The Problem There is nothing more annoying than dropping a perfectly good water bottle and having the plastic cap crack or shatter. Instead of throwing the bottle away, I fired up the 3D printer to create a durable, watertight replacement.

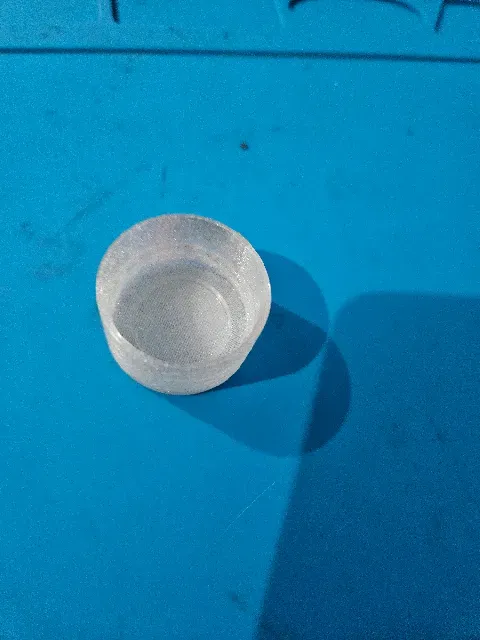

The Design This cap is designed to be a straightforward, highly functional replacement. It threads smoothly onto standard bottle necks and provides a tight seal to prevent leaks.

I have included two different file versions to choose from:

- Ridged Version: Features textured vertical ridges around the outside for extra grip, making it easy to open and close tightly, even with wet hands.

- Smooth Version: A sleek, low-profile design for a clean aesthetic.

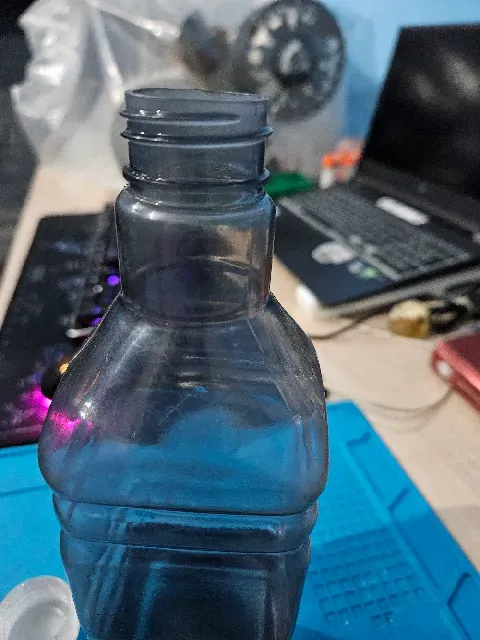

(Note for uploading: Make sure to set image_52a91f.png as your main cover photo, as it perfectly shows the clear PETG result next to the threaded bottle neck!)

Print Settings

To ensure the cap doesn't leak and can withstand being twisted tightly, I highly recommend the following settings:

- Material: PETG (Highly recommended over PLA. PETG is slightly more flexible, which helps create a better watertight seal against the bottle's rim, and it handles moisture much better).

- Layer Height: 0.16 mm or 0.20 mm (Lower layer heights help produce much smoother and more accurate internal threads).

- Wall/Perimeter Count: 4 to 6 walls. (Extra walls are crucial for making the cap watertight and strong enough to resist cracking when tightened).

- Top/Bottom Layers: 5+ layers (To prevent water from seeping through the top surface).

- Infill: 100% (Since it is a small part, solid infill ensures maximum durability).

- Supports: No supports required. Print it flat on its top surface.
