Modular Adapter For eSun Spools on CR-10/CR-10S

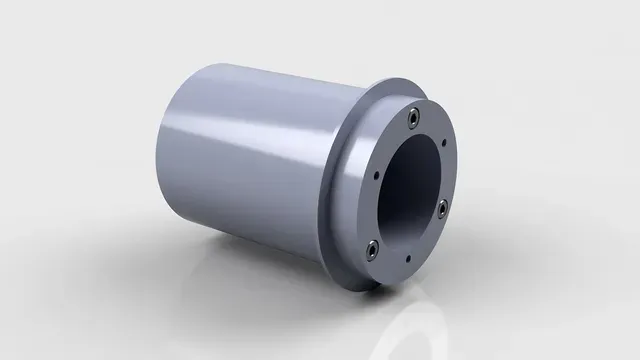

This is an eSun filament spool adapter for the CR-10/CR-10S.

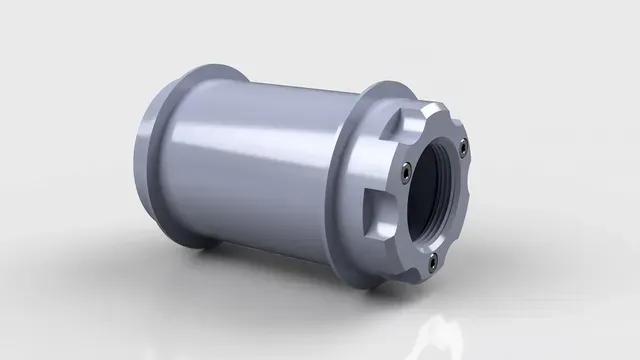

The adapter will fit to a spool that has an 52mm ID and 60mm width so may suit other brand filament spools (please comment and let me know!). It is designed to provide some level of modularity in configuration and for future expansion of the design. The individual pieces can be used separately or bolted together in various combinations for ease of use depending on user preferences.

The benefit of this adapter is to provide a more stable spool platform and to raise the spool weight up to the rotational axis, resulting in a much smoother action which makes it easier for the extruder to feed filament.

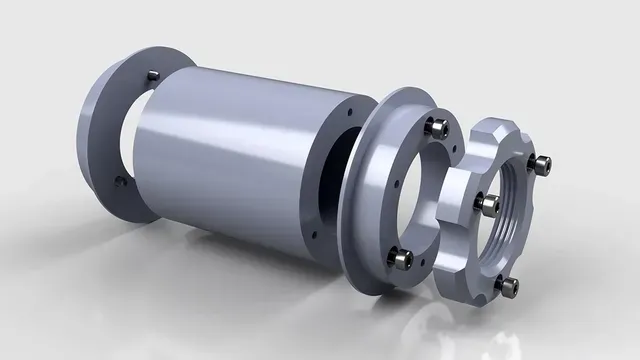

You will need to print 1 x nut, 2 x spacers and 1 x tube.

A maximum of 9 x M3x10mm socket head screws will be required.

Print Settings

Printer Brand:

Creality

Printer: CR-10S

Rafts:

No

Supports: No

Resolution:

0.2mm

Infill: 20%-100%

Notes:

If you are printing at low infill then please ensure to add at least 3 perimeters/walls to ensure the thread prints correctly and to allow enough material around screw holes.

Post-Printing

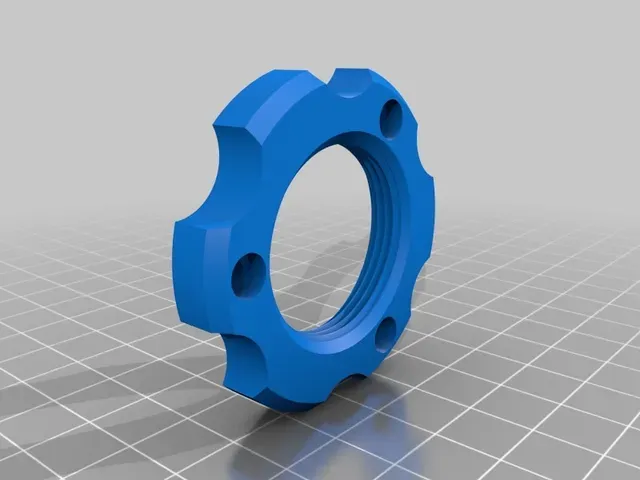

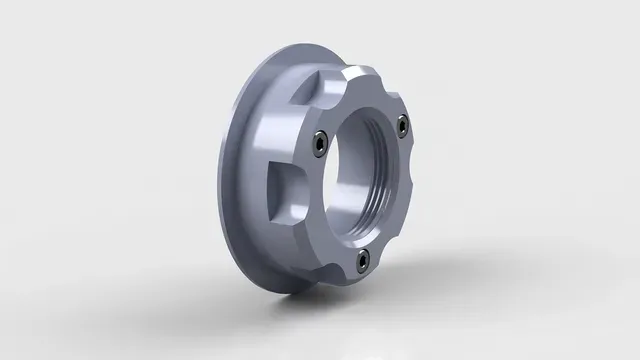

The threaded nut is M30x1.5 and matches the stock spool holder tube but depending on printer settings may require the nut to be threaded on and off the stock spool tube to wear in the printed thread and to smooth out layer seams on the thread if present.

Depending on configuration chosen you may be required to use the M3 screws to "self tap" the holes. An M3 plug tap (used on the blind holes) will give a nicer result but is not required.
