Custom L-Shape FGCP for ATR 72

This was my first flight sim device make but it was a mess before i uploaded it. i tried to clean it as much as i can ang giving this one for free. :)

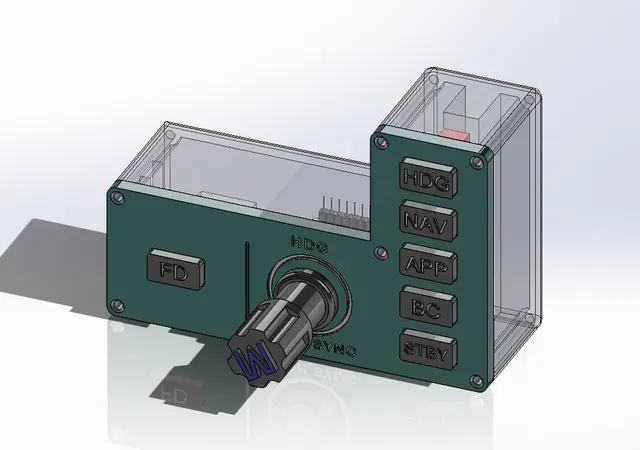

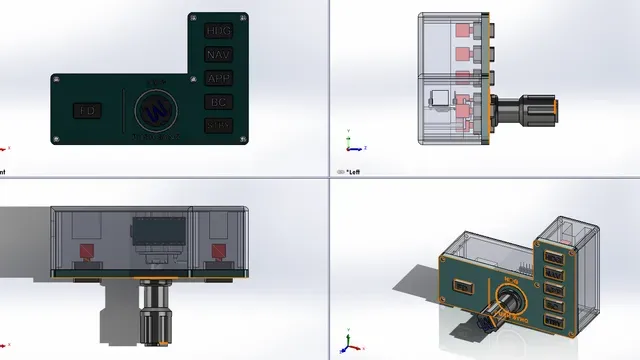

The L-shaped FGCP (Flight Guidance Control Panel) is a meticulously designed 3D-printable replica tailored for the ATR 72-600 flight simulator.

Crafted with precision, this model features a robust green housing with a transparent cover, showcasing the internal components for an authentic look.

The panel includes a prominent rotary knob labeled "PUSH SYNC" with a blue "HDG" marker, used for heading adjustments, alongside a secondary "FD" button for flight director control.

The vertical section houses five additional buttons—HDG, NAV, APP, BC, and STBY—each clearly labeled for navigation and approach functions, mirroring the real aircraft's cockpit interface.

This detailed model, complete with internal circuit board elements, is ideal for aviation enthusiasts and simulator builders seeking to enhance their setups with a functional and visually accurate FGCP replica.

Print it however you like. no need for supports. :)

(6) M3x 10 or greater (1) Ky 040 rotary encoder (6) momentary switches 6x6 or 8.5x8.5 mm microcontroller
