Versatile Stackable Storage Box System — 250 mm Edition

🧱 About the Model

The new size variant of the Stackable Box System offers a larger storage area and compatible modular parts. The box size of 250 × 250 mm is ideal for sorting bricks, components, creative materials, or small parts. It is based on the original versions of the Versatile Stackable Storage Box System .

📐 Dimensions and Variants

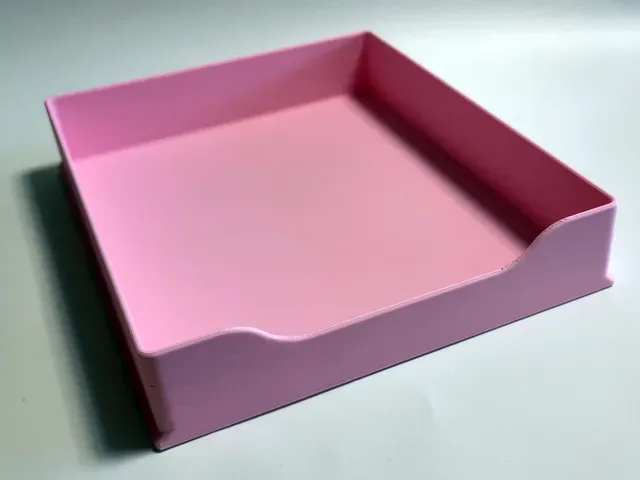

- Box 250 × 250 mm

- height: 50 mm

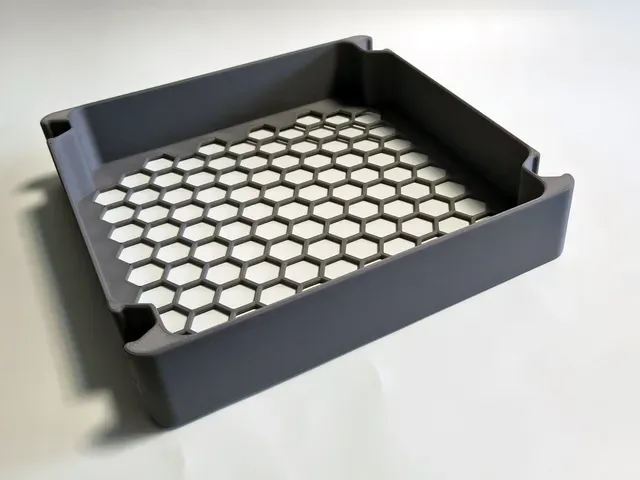

- variants: solid bottom / hex bottom

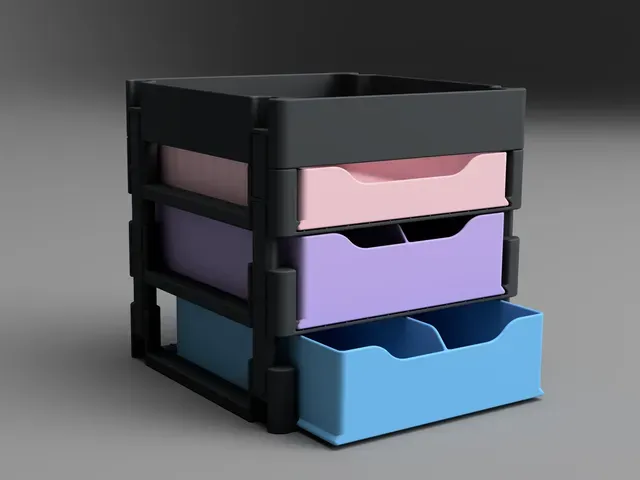

- Drawers with base 250 × 250 mm

- heights: 50 mm and 75 mm

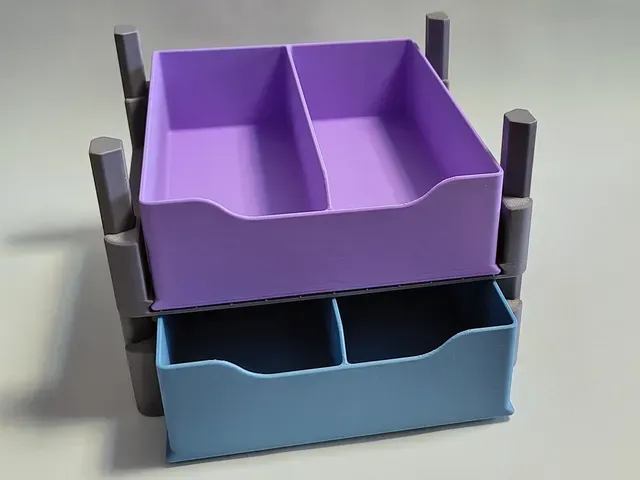

- variants: with divider / without divider

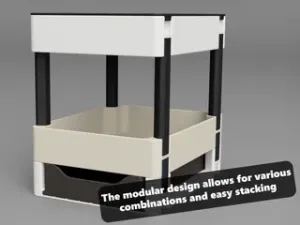

🧩 Modular Stand

The Stand part allows safe stacking of individual boxes and drawers. In the slicer, you can adjust the length of the Stand to create a larger gap between levels — ideal for access and increased storage space.

🖨 Printing Recommendations

0.4 mm Nozzle

- Material: PLA / PETG

- Layer height: 0.2 mm

- Wall count: 2

- Infill: 8% gyroid

- No supports

The set in the picture weighs 1385 g with these settings.

0.6 mm Nozzle (in photos)

- Material: PLA / PETG

- Layer height: 0.3 mm

- Wall count: 1

- Infill: 8% gyroid

- No supports

The set in the picture weighs 1362 g with these settings. Shorter printing time.

🧰 Usage

- sorting bricks and parts

- organizing creative materials

- modular workstation

- drawer system for small components

- clear storage by color, type, or project

🆕Split

The Split.3mf insert has been added to further divide the drawer into 4 compartments. Stick it into the drawer behind the central circle.
