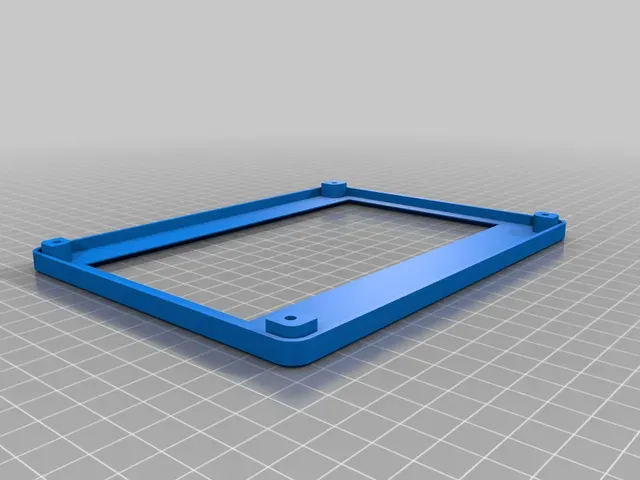

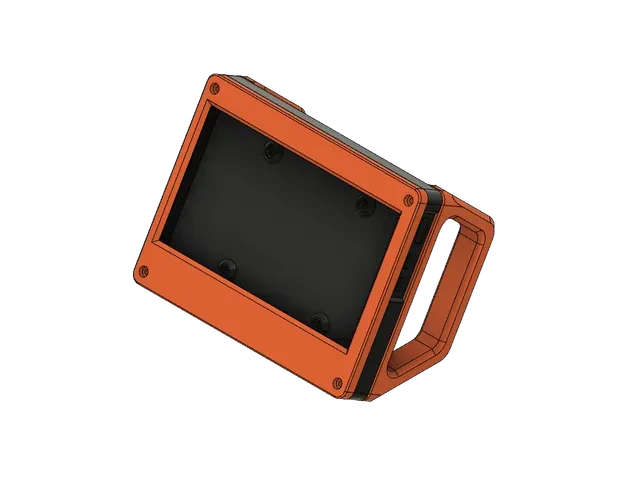

7" Touch Display Case for Raspberry Pi 3 B+

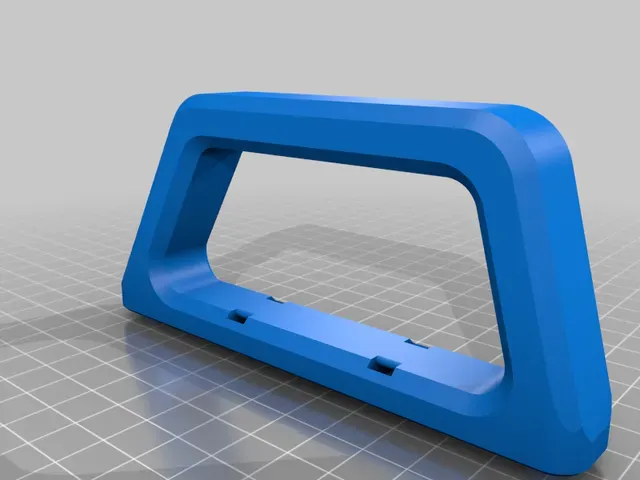

I needed a cover for my 7" touch display I bought on Amazon for my Raspberry Pi 3 B+. I couldn't really find a good case so I decided to make one. I wasn't sure at what angle I was going to want the display, so I designed the feet to be reversable. I included angles of 15 deg. and 30 deg. Just flip it to the other side of the case to switch angles. I also included zip tie mounts in the feet for cable management. I used a 6" HDMI and USB cables with right angles to reduce cable strain.

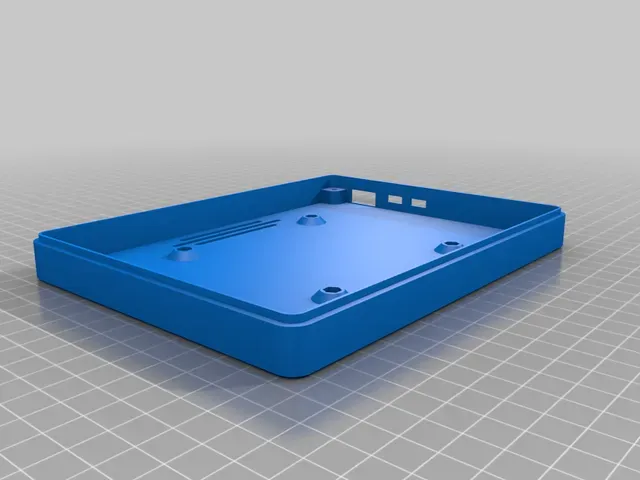

The case bottom has VESA mounts to allow the use of any Pi case that has 75mm VESA mounts. The case I used was the Raspberry Pi 3 B Case from jayftee ( https://www.thingiverse.com/thing:1427797 ). It's a good case design, and fits well.

Display I bought:

Kuman 7 Inch Touch Screen Display 1024x600 - https://www.amazon.com/gp/product/B01F3801A2/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

Cables I Used:

HDMI - https://www.amazon.com/gp/product/B01MYWAHCI/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

USB - any with a 90 deg angle

Hardware Fasteners:

M3 x 8mm - to mount the case to the back

M3 x 30mm - to mount case and feet together

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

Doesn't Matter

Supports: No

Resolution:

0.2mm

Infill: 20%
